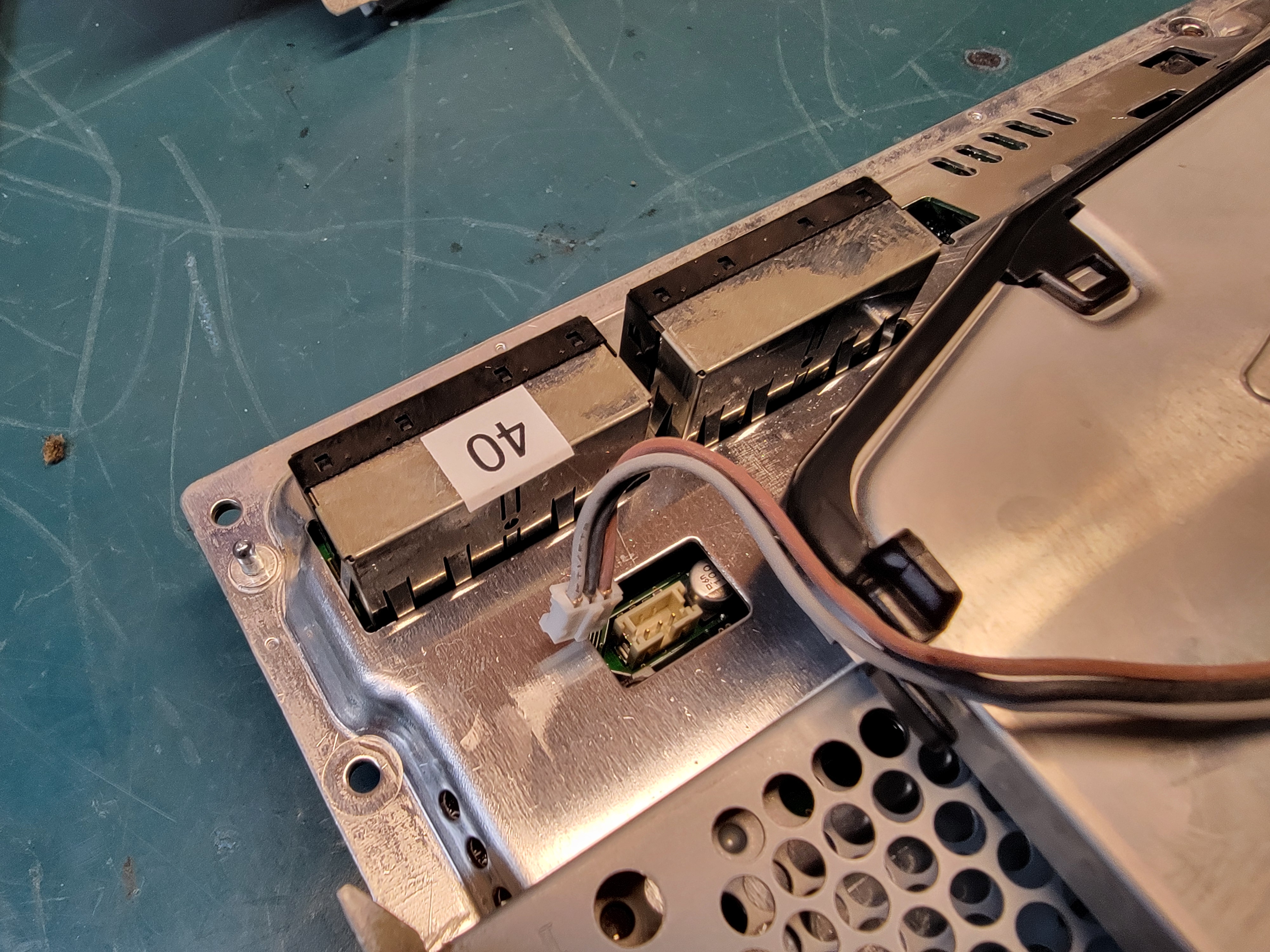

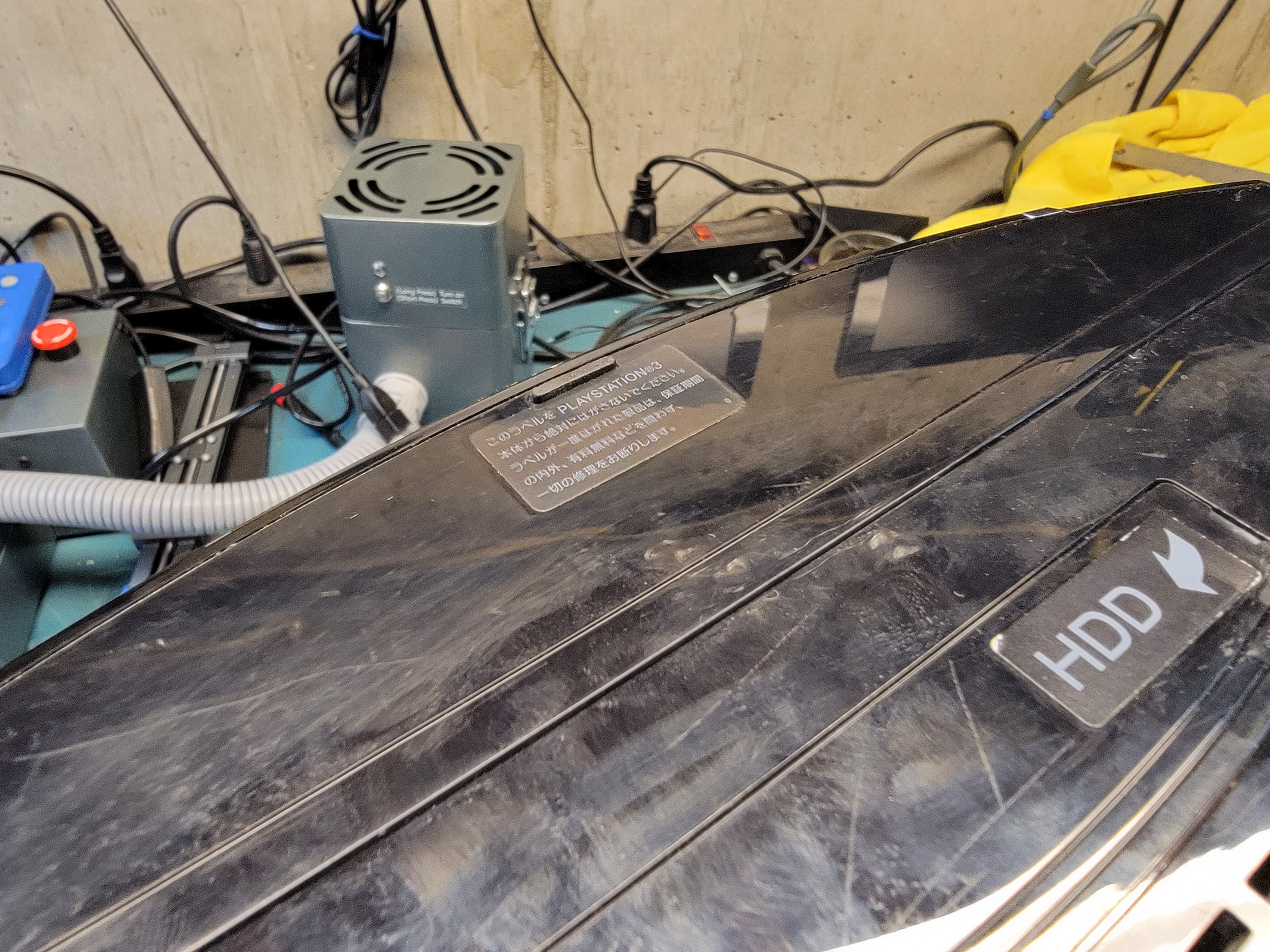

PS3 Factory Frankie 40nm first i seen ebay special 40 bucks factory sealed

[iKon]

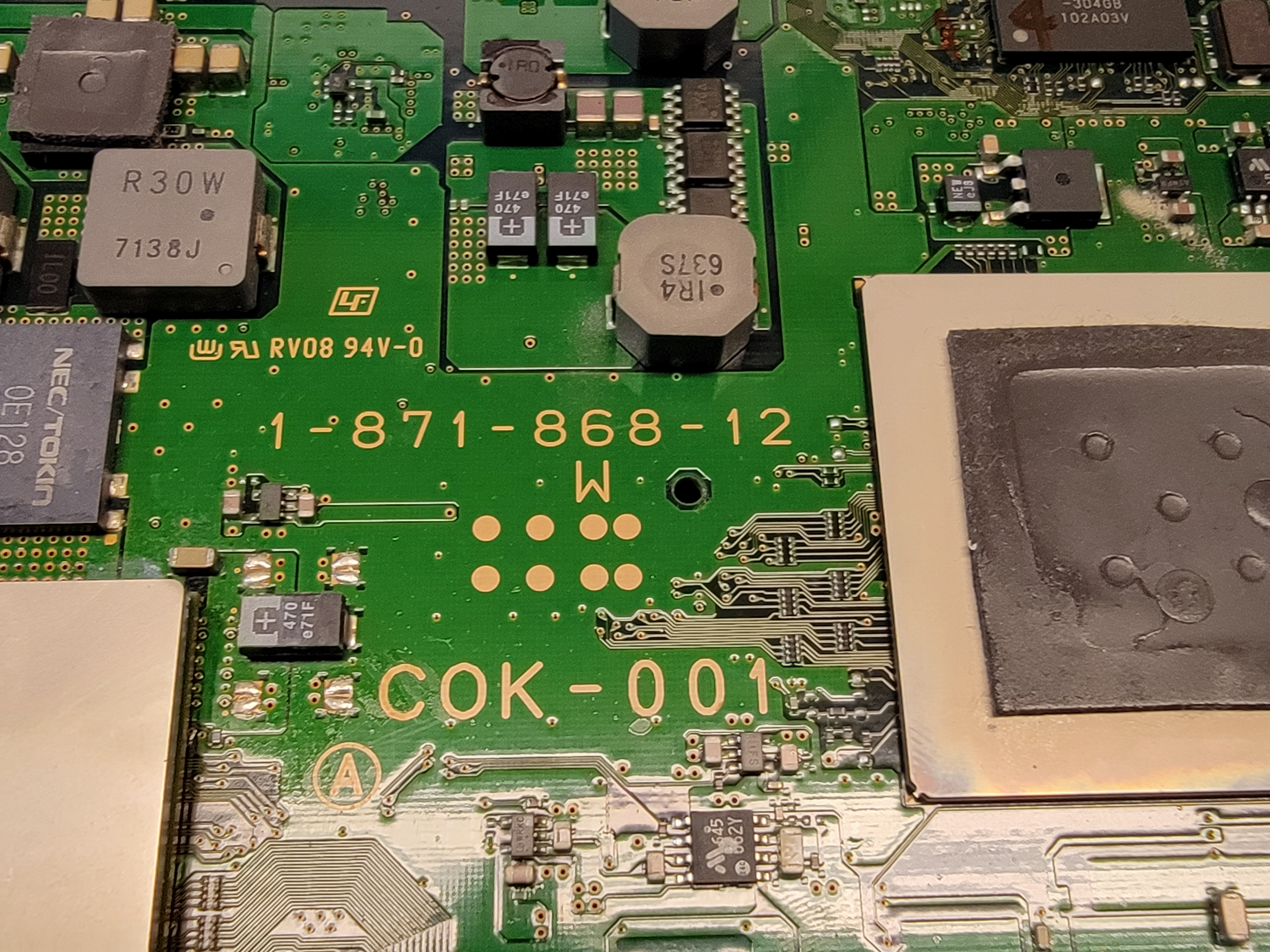

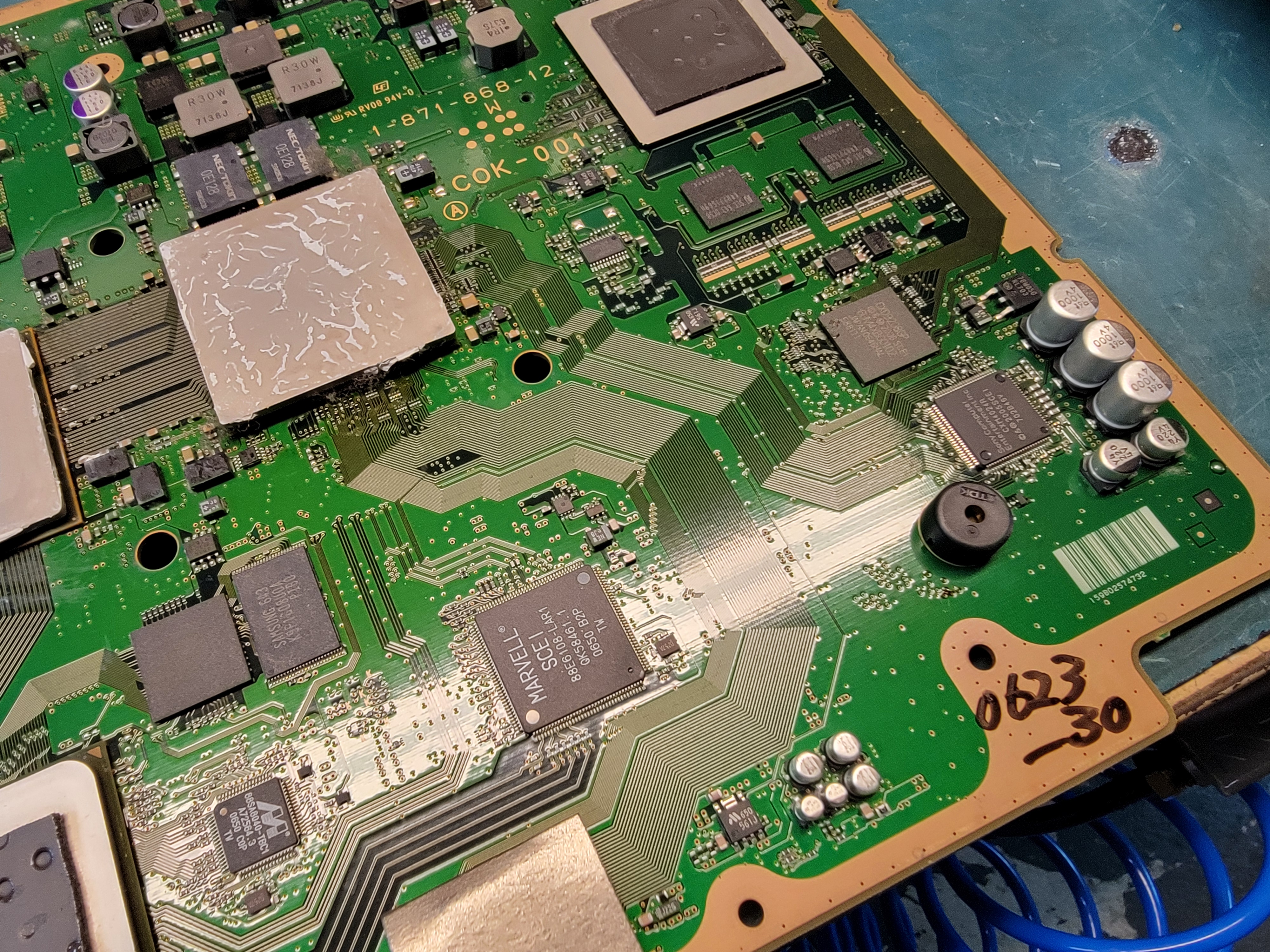

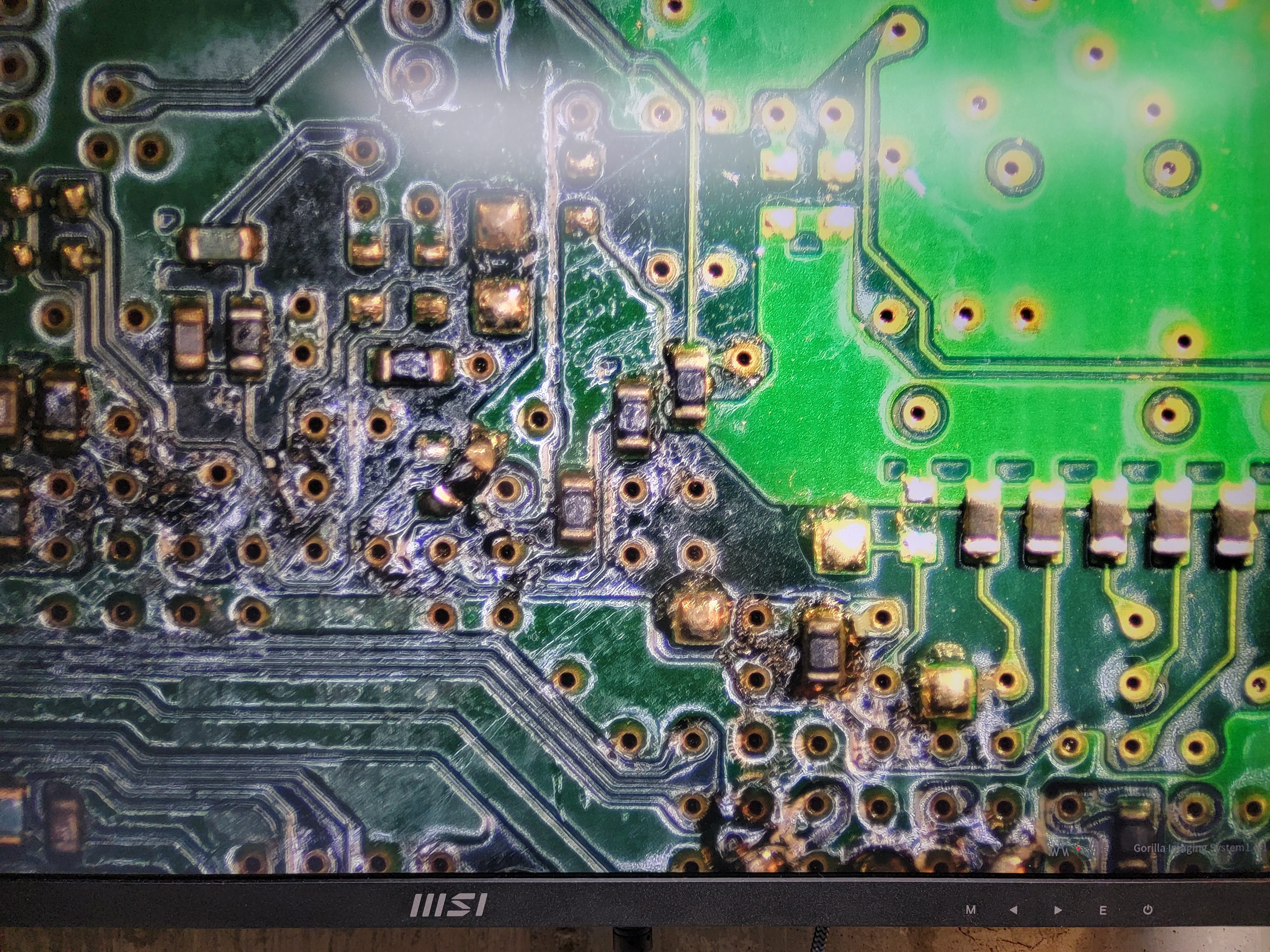

Hah lets see here i know some post are already there about sony factory franks(pretty sure it is FACTORY SEALED) but just found one here and the problems it has with pics....

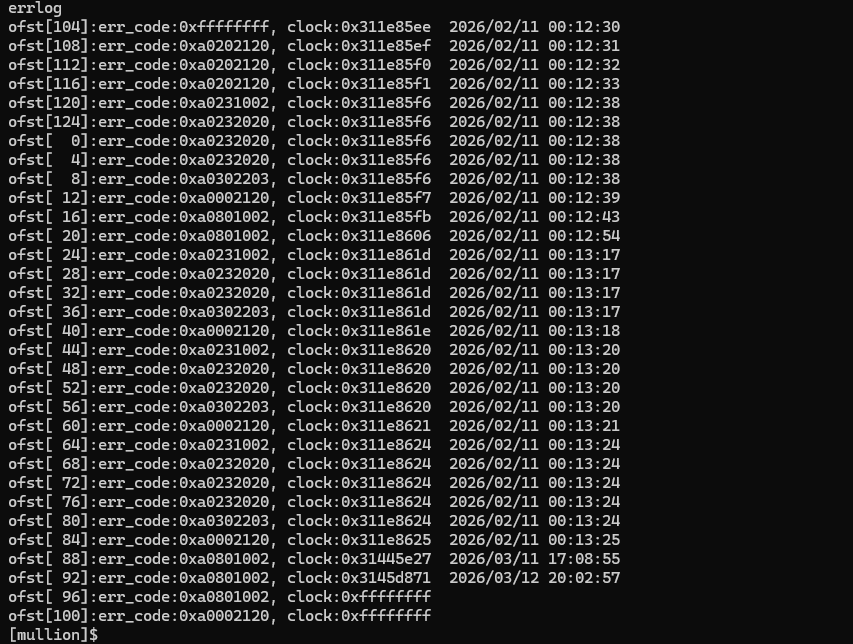

Anywho error stuff:

ofst[ 96]:err_code:0xffffffff, clock:0x311e85ec 2026/02/11 00:12:28
ofst[100]:err_code:0xa0202120, clock:0x311e85ed 2026/02/11 00:12:29
ofst[104]:err_code:0xa0202120, clock:0x311e85ee 2026/02/11 00:12:30
ofst[108]:err_code:0xa0202120, clock:0x311e85ef 2026/02/11 00:12:31
ofst[112]:err_code:0xa0202120, clock:0x311e85f0 2026/02/11 00:12:32
ofst[116]:err_code:0xa0202120, clock:0x311e85f1 2026/02/11 00:12:33
ofst[120]:err_code:0xa0231002, clock:0x311e85f6 2026/02/11 00:12:38
ofst[124]:err_code:0xa0232020, clock:0x311e85f6 2026/02/11 00:12:38
ofst[ 0]:err_code:0xa0232020, clock:0x311e85f6 2026/02/11 00:12:38
ofst[ 4]:err_code:0xa0232020, clock:0x311e85f6 2026/02/11 00:12:38
ofst[ 8]:err_code:0xa0302203, clock:0x311e85f6 2026/02/11 00:12:38
ofst[ 12]:err_code:0xa0002120, clock:0x311e85f7 2026/02/11 00:12:39
ofst[ 16]:err_code:0xa0801002, clock:0x311e85fb 2026/02/11 00:12:43
ofst[ 20]:err_code:0xa0801002, clock:0x311e8606 2026/02/11 00:12:54
ofst[ 24]:err_code:0xa0231002, clock:0x311e861d 2026/02/11 00:13:17
ofst[ 28]:err_code:0xa0232020, clock:0x311e861d 2026/02/11 00:13:17
ofst[ 32]:err_code:0xa0232020, clock:0x311e861d 2026/02/11 00:13:17
ofst[ 36]:err_code:0xa0302203, clock:0x311e861d 2026/02/11 00:13:17
ofst[ 40]:err_code:0xa0002120, clock:0x311e861e 2026/02/11 00:13:18
ofst[ 44]:err_code:0xa0231002, clock:0x311e8620 2026/02/11 00:13:20
ofst[ 48]:err_code:0xa0232020, clock:0x311e8620 2026/02/11 00:13:20
ofst[ 52]:err_code:0xa0232020, clock:0x311e8620 2026/02/11 00:13:20
ofst[ 56]:err_code:0xa0302203, clock:0x311e8620 2026/02/11 00:13:20
ofst[ 60]:err_code:0xa0002120, clock:0x311e8621 2026/02/11 00:13:21
ofst[ 64]:err_code:0xa0231002, clock:0x311e8624 2026/02/11 00:13:24
ofst[ 68]:err_code:0xa0232020, clock:0x311e8624 2026/02/11 00:13:24
ofst[ 72]:err_code:0xa0232020, clock:0x311e8624 2026/02/11 00:13:24
ofst[ 76]:err_code:0xa0232020, clock:0x311e8624 2026/02/11 00:13:24
ofst[ 80]:err_code:0xa0302203, clock:0x311e8624 2026/02/11 00:13:24
ofst[ 84]:err_code:0xa0002120, clock:0x311e8625 2026/02/11 00:13:25
ofst[ 88]:err_code:0xa0801002, clock:0x31445e27 2026/03/11 17:08:55
ofst[ 92]:err_code:0xa0801002, clock:0x3145d871 2026/03/12 20:02:57

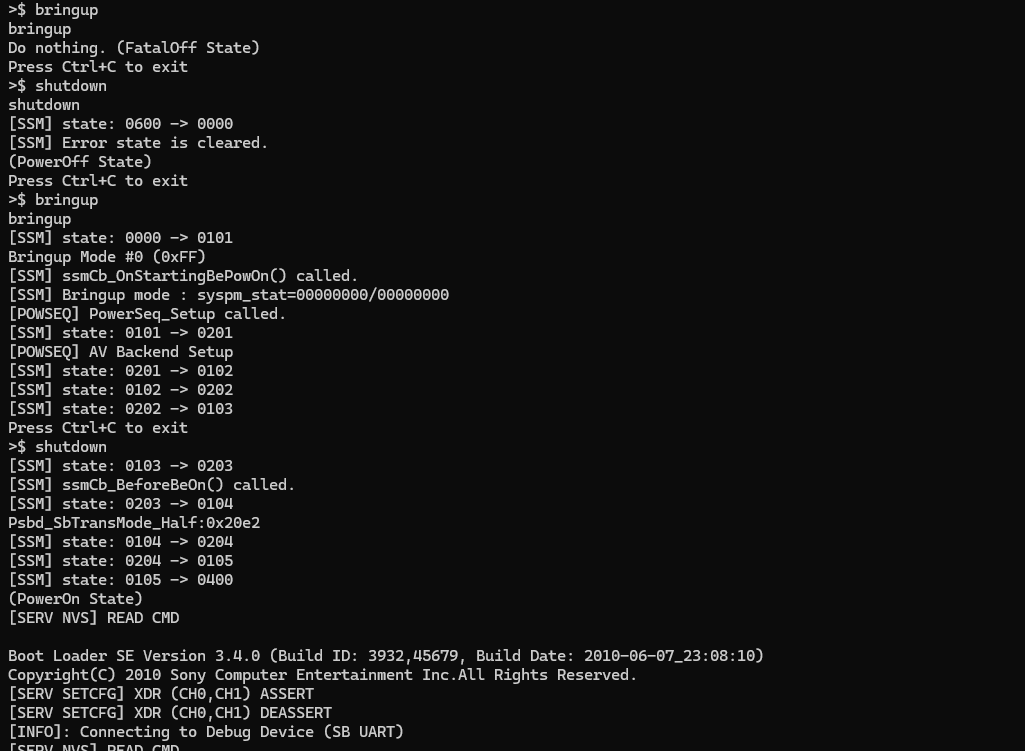

>$ bringup
bringup
Do nothing. (FatalOff State)
Press Ctrl+C to exit
>$ shutdown
shutdown
[SSM] state: 0600 -> 0000
[SSM] Error state is cleared.
(PowerOff State)
Press Ctrl+C to exit
>$ bringup
bringup
[SSM] state: 0000 -> 0101
Bringup Mode #0 (0xFF)
[SSM] ssmCb_OnStartingBePowOn() called.
[SSM] Bringup mode : syspm_stat=00000000/00000000
[POWSEQ] PowerSeq_Setup called.
[SSM] state: 0101 -> 0201
[POWSEQ] AV Backend Setup
[SSM] state: 0201 -> 0102
[SSM] state: 0102 -> 0202
[SSM] state: 0202 -> 0103
Press Ctrl+C to exit
>$ shutdown
[SSM] state: 0103 -> 0203
[SSM] ssmCb_BeforeBeOn() called.
[SSM] state: 0203 -> 0104
Psbd_SbTransMode_Half:0x20e2
[SSM] state: 0104 -> 0204
[SSM] state: 0204 -> 0105
[SSM] state: 0105 -> 0400
(PowerOn State)
[SERV NVS] READ CMD
Boot Loader SE Version 3.4.0 (Build ID: 3932,45679, Build Date: 2010-06-07_23:08:10)
Copyright(C) 2010 Sony Computer Entertainment Inc.All Rights Reserved.
[SERV SETCFG] XDR (CH0,CH1) ASSERT
[SERV SETCFG] XDR (CH0,CH1) DEASSERT
[INFO]: Connecting to Debug Device (SB UART)
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV THERM] NOTIFY_MODE CMD
[SERV NOTIF] CONTROL_LED
[SERV NOTIF] RING_BUZZER
[SERV NOTIF] CONTROL_LED
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SERV NVS] READ CMD
[SSM] *** Power Fail RS ***
[SSM] state: 0400 -> 0700
[POWSEQ] AV Backend Letup
[SSM] ssmCb_AfterBeOn() called.
[SSM] Shutdown mode : syspm_stat=00000000/00000000
[ERROR]: 0xa0801002
[POWSEQ] PowerSeq_Letup called.
[SSM] state: 0700 -> 0600
(PowerOff State) (Fatal)
[ERROR]: 0xa0002120
shutdown
[SSM] state: 0600 -> 0000
[SSM] Error state is cleared.
(PowerOff State)
Press Ctrl+C to exit

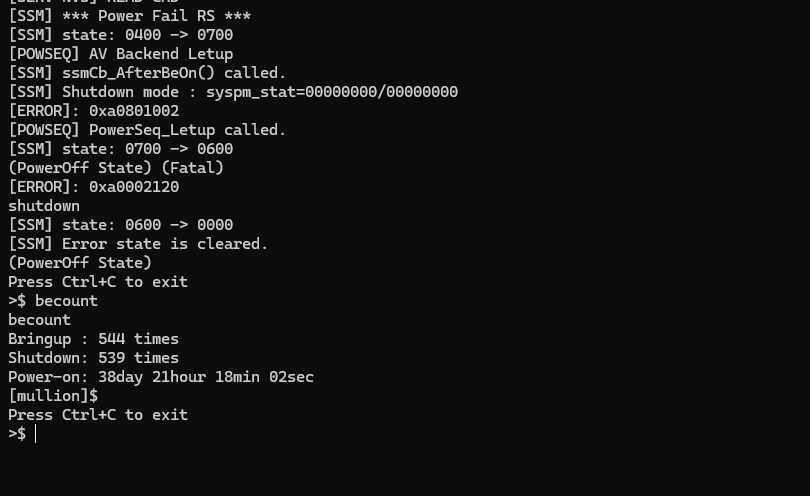

See if i can fix this sucker!!! 39 Day Run Time

Ok onto the FIX for : a0302203, a0002120, a0801002

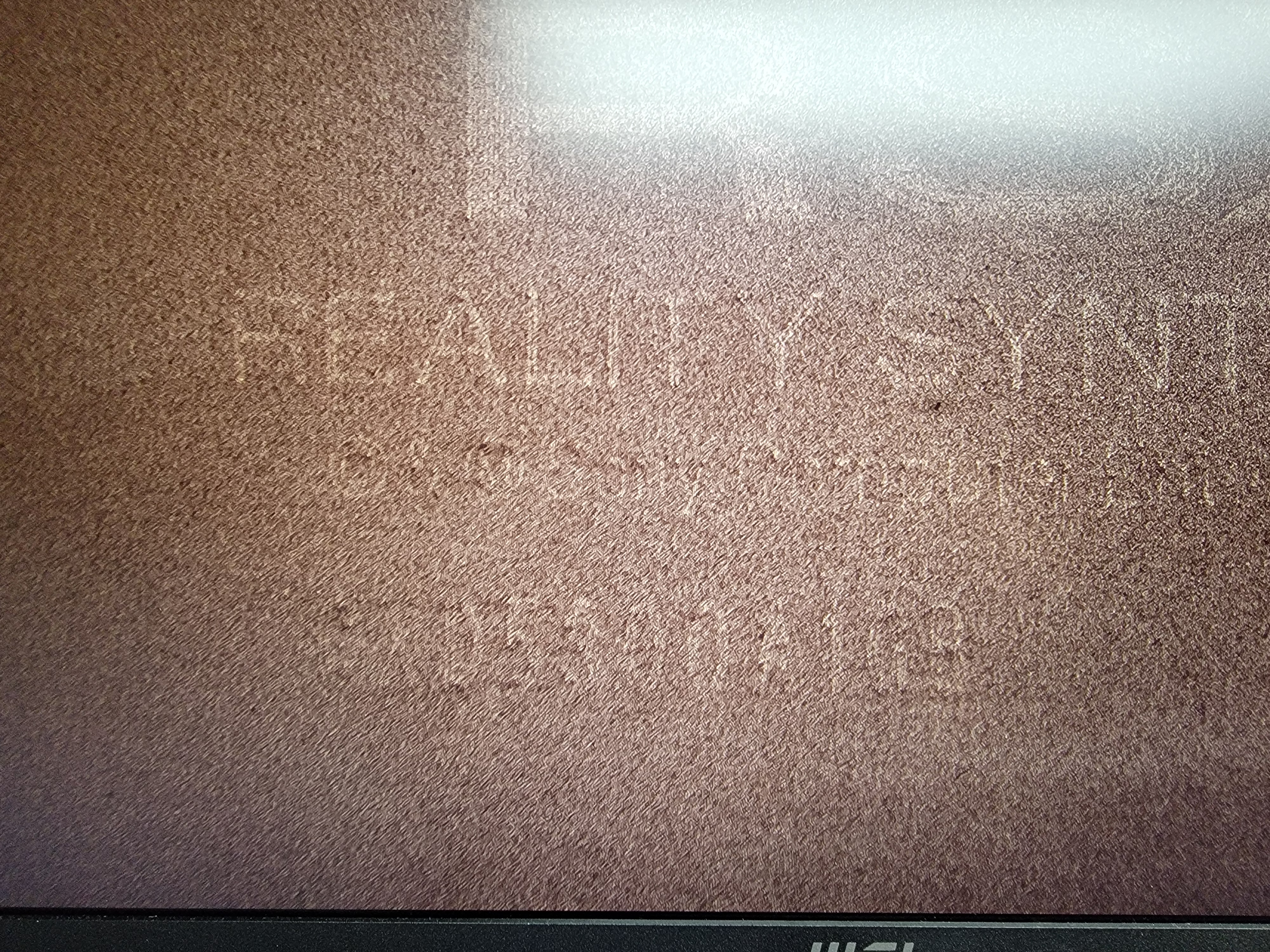

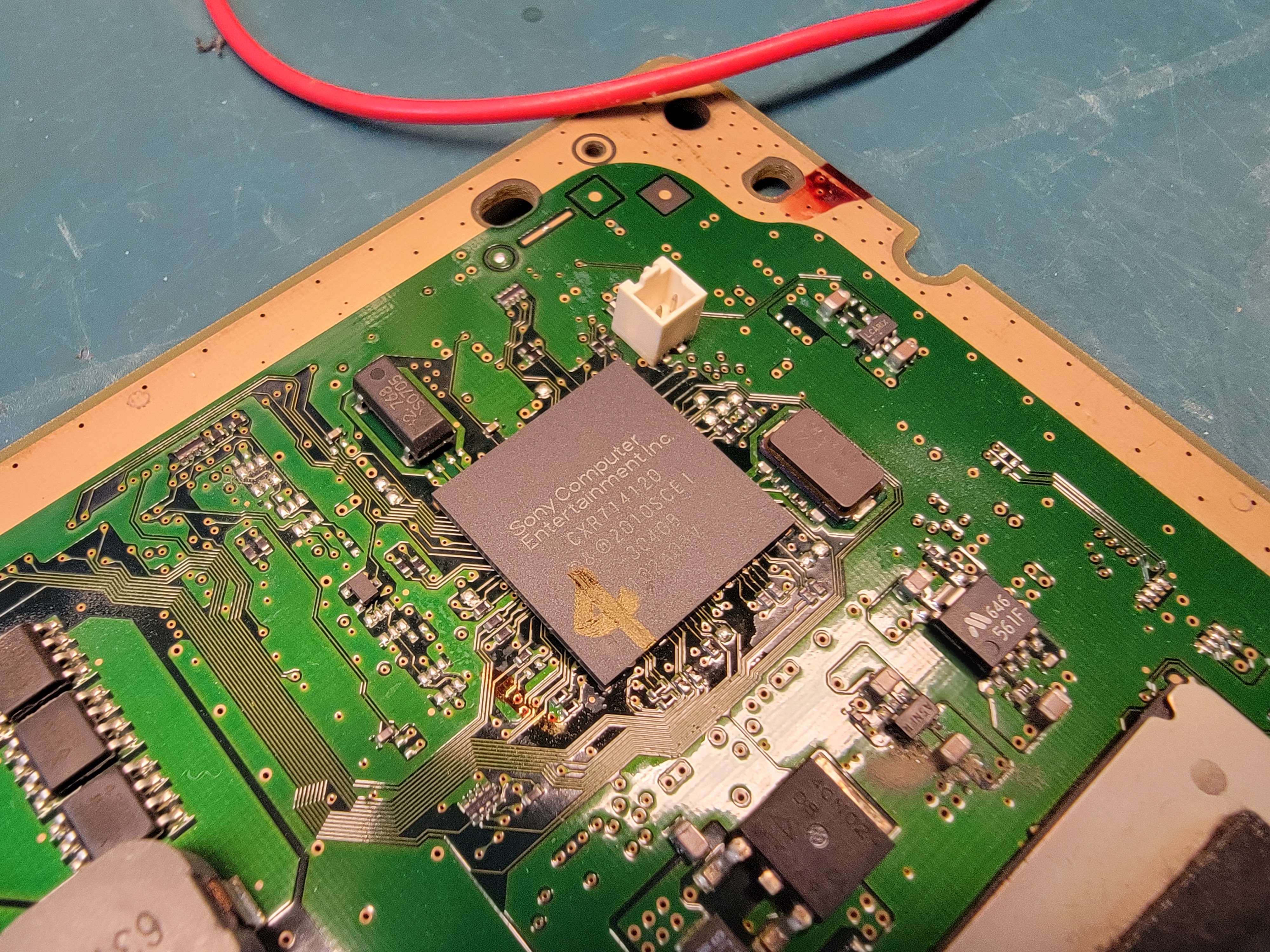

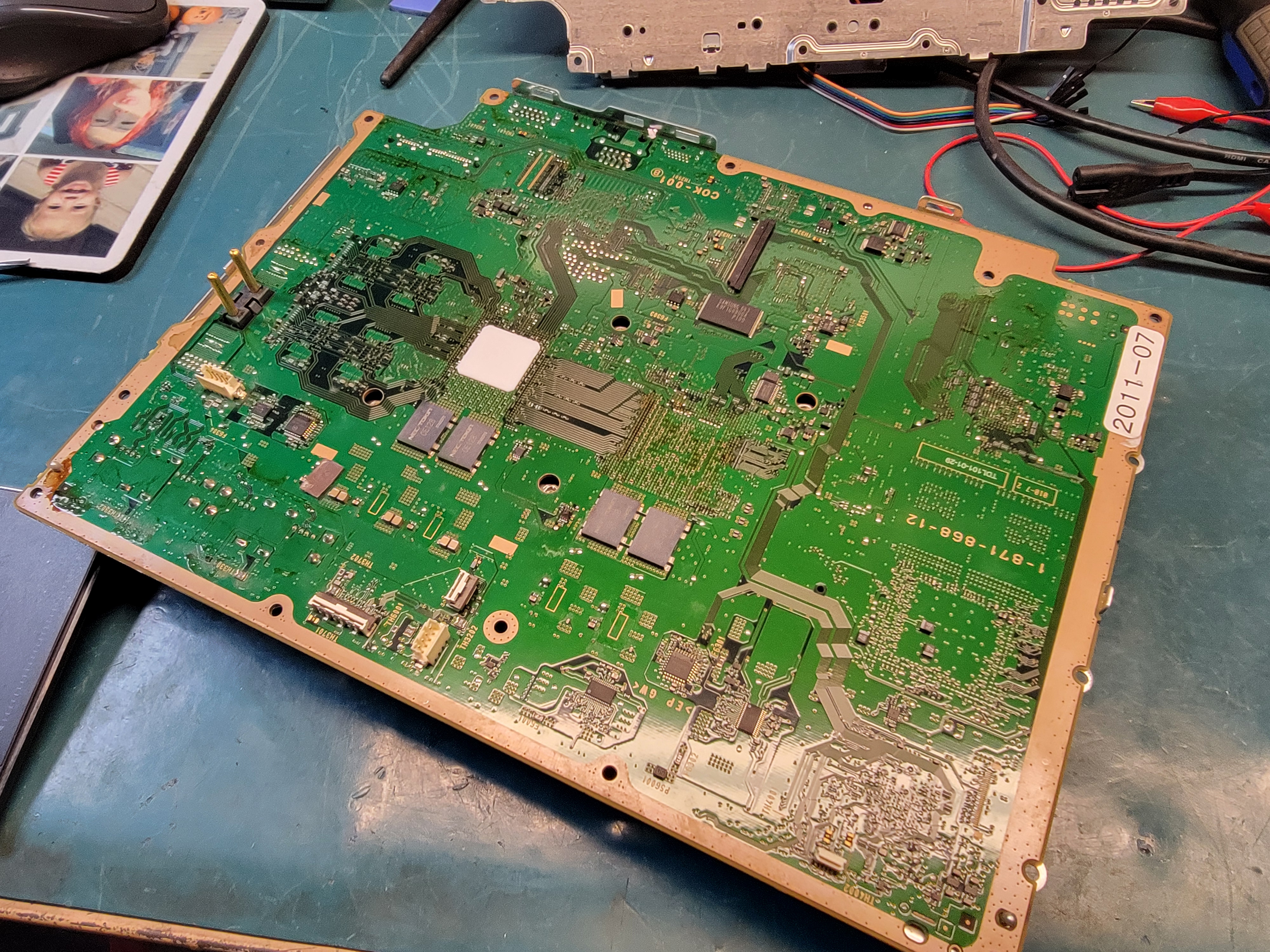

I started thinking could it be rsx i mean Sony did the chip install hah like that means much.... Anyways i got that out of my head.. Probed rails voltages are all there everywhere.... Ok SCOPE time...

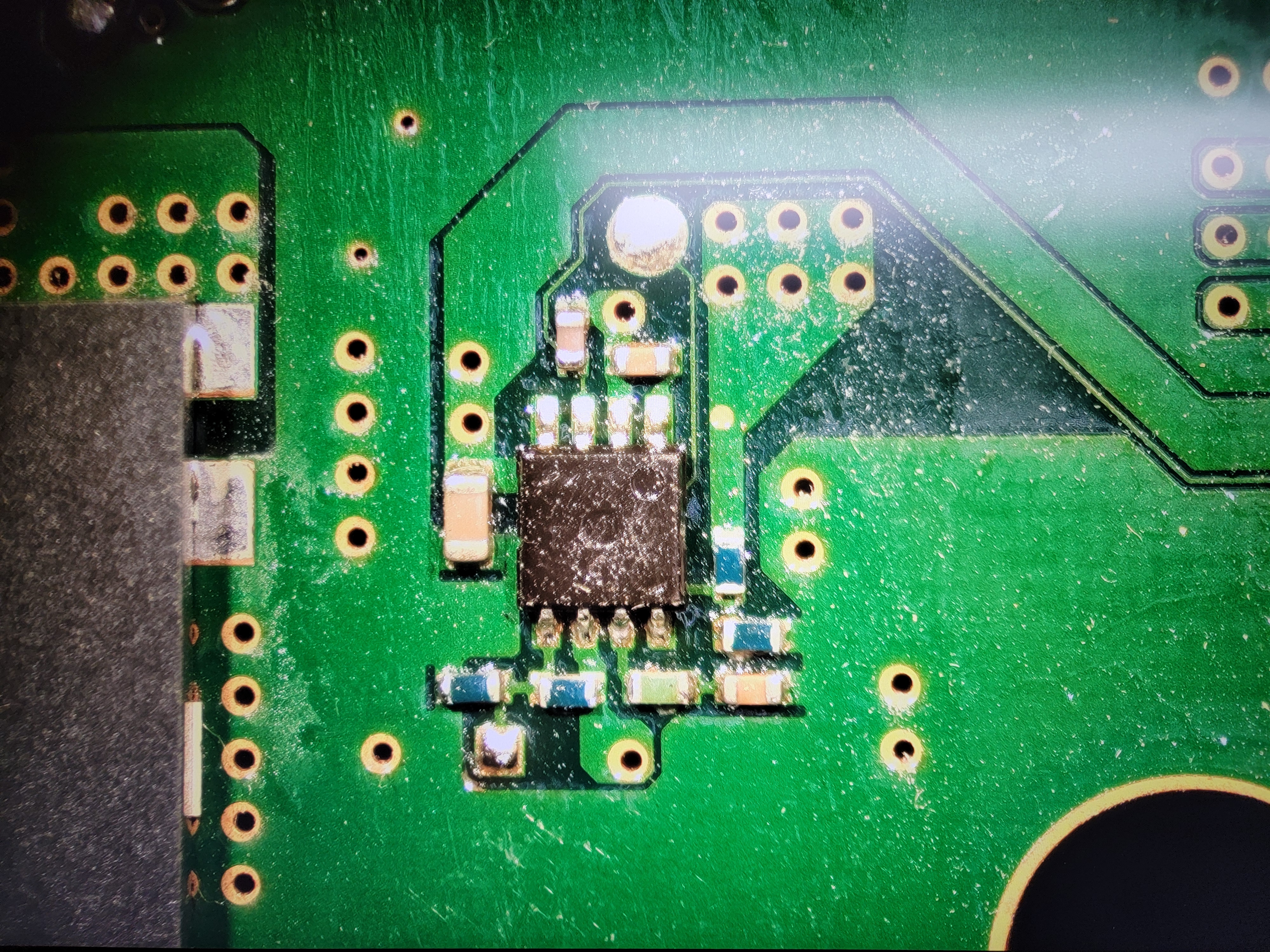

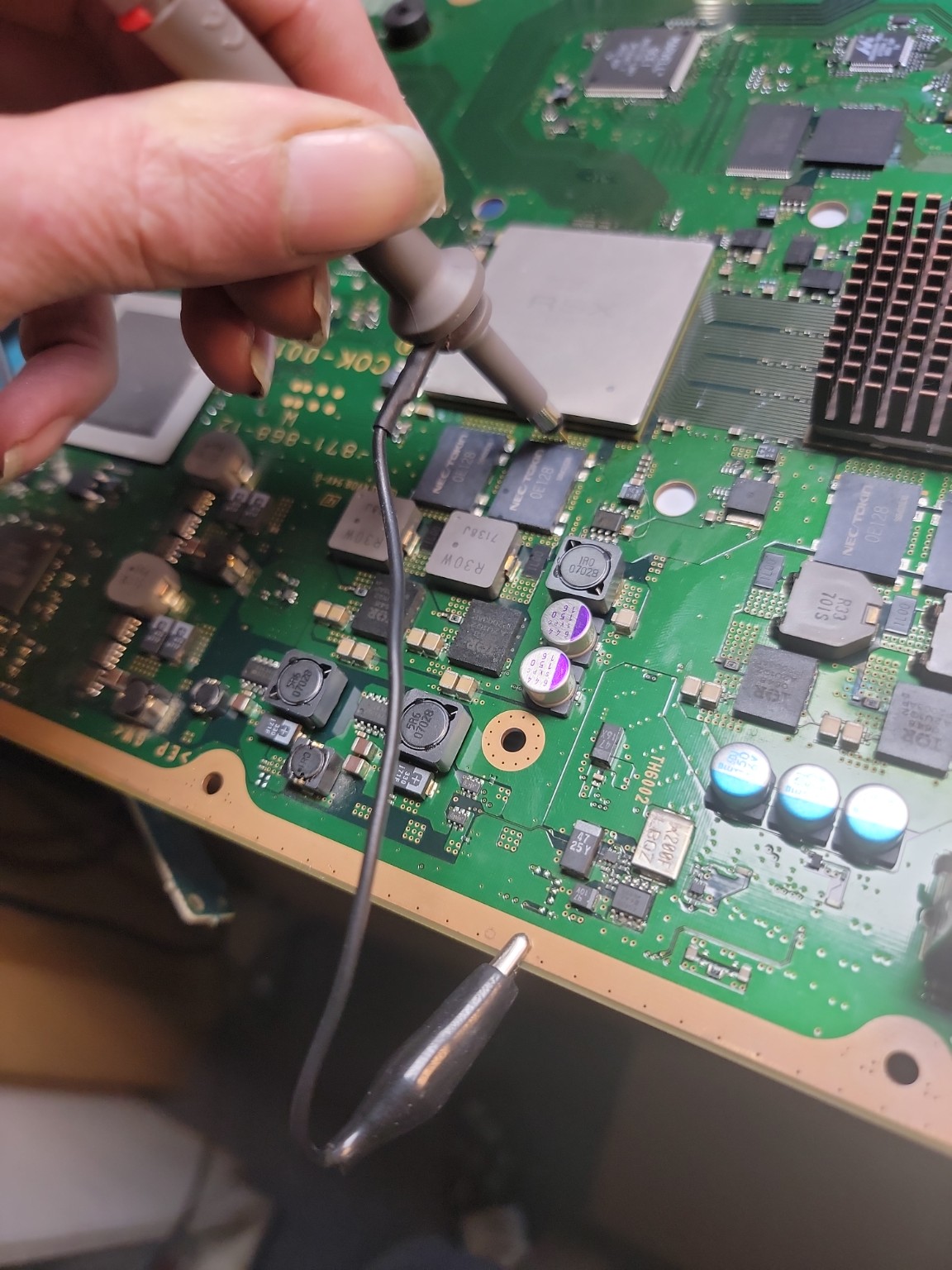

Target Test point:

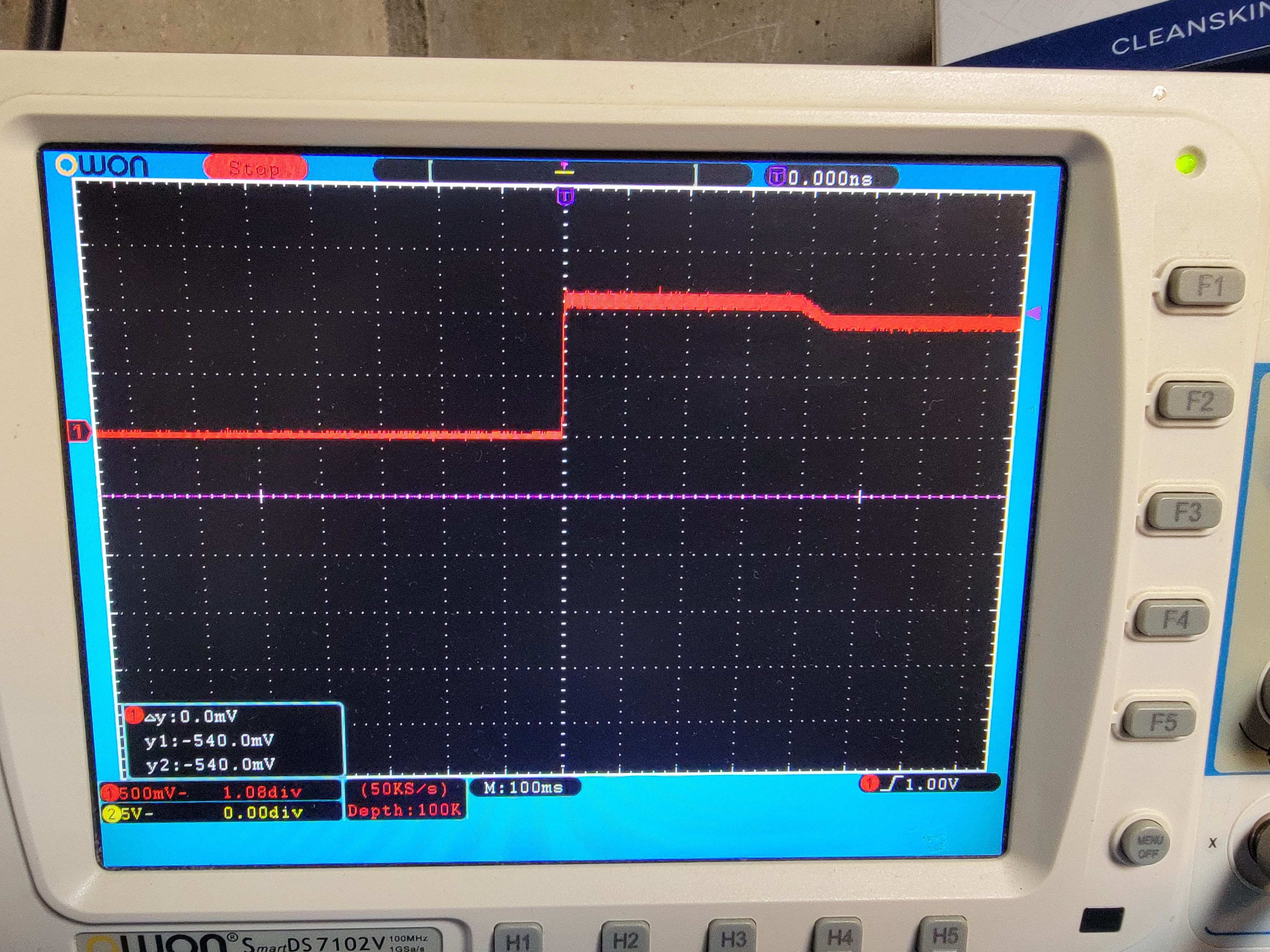

DC Coupling looked pretty ok little high then drop down but not suspect...

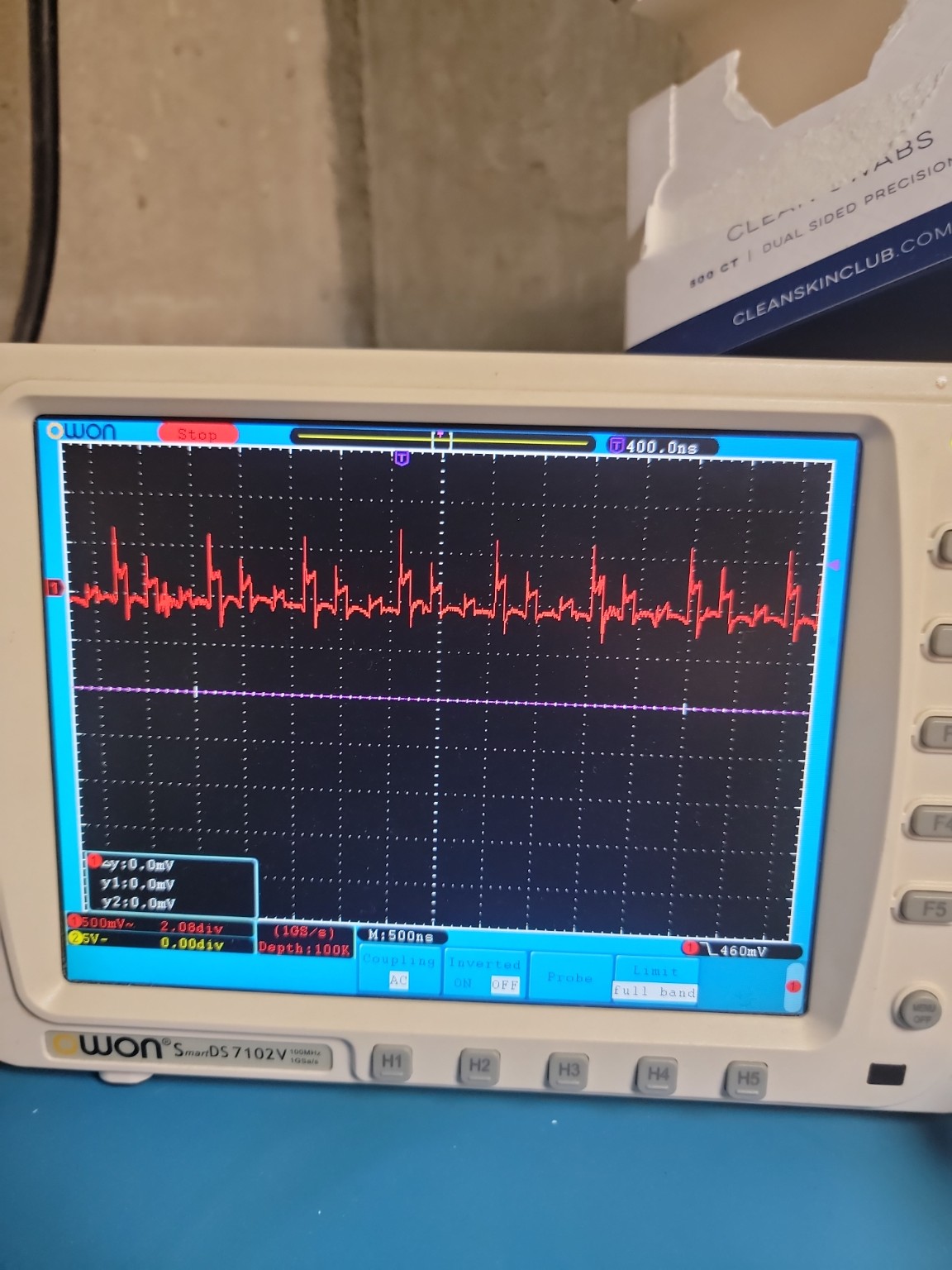

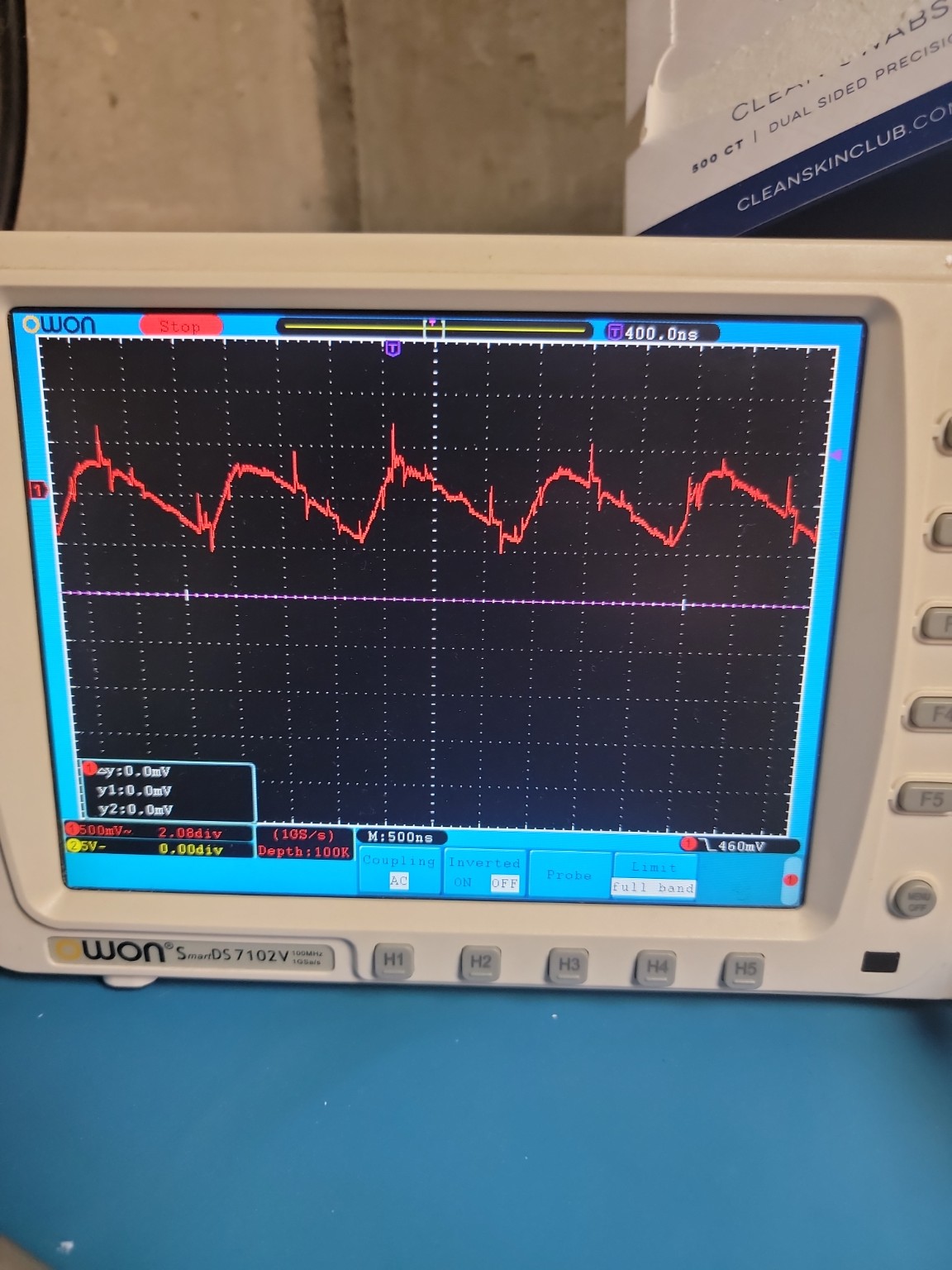

Ok lets go with AC on DC vddc and see if there is anything there AC coupling to inspect ripple

Ok that is pretty suspect when we should be seeing soemthing like this from a working good board...

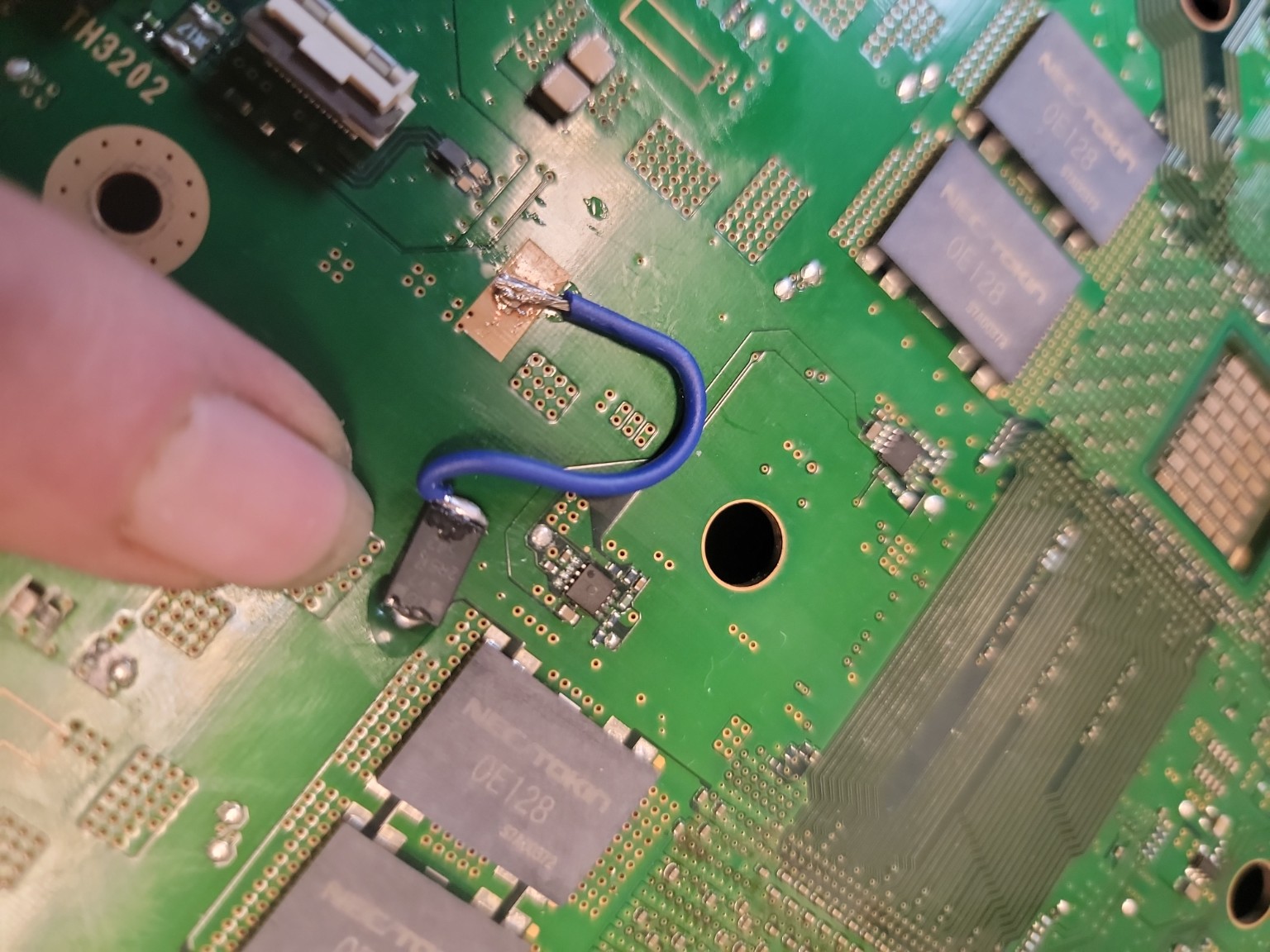

Lets test an idea here

That one cap tighten that ripple a bit ehh??? Console now stays on. Not going to check if video lets just proceed

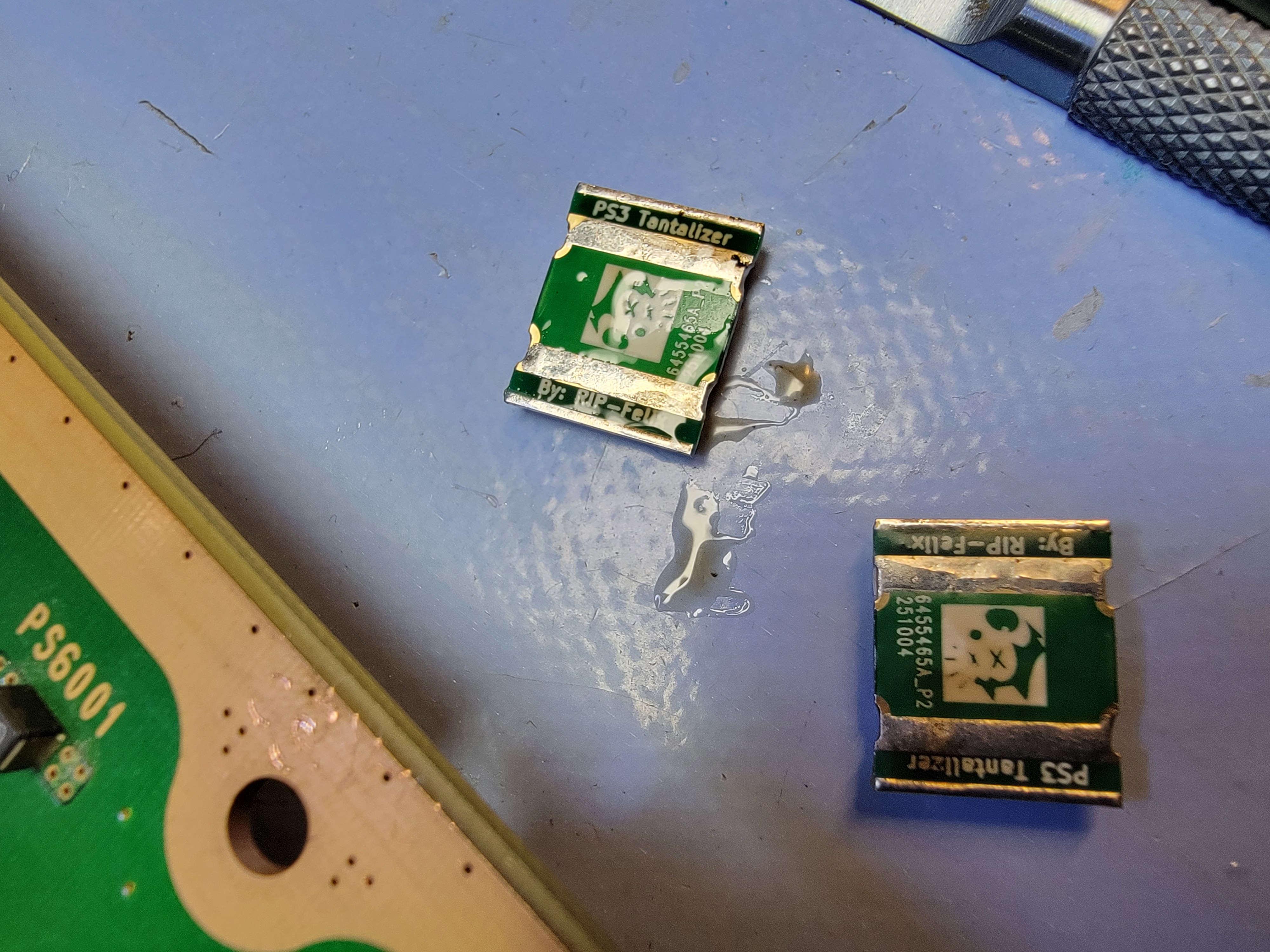

Ok Replace all the tokins even though CELL looked pretty solid but hey lets get it done....
Ill do a couple at a time.... and check ripple as i go...

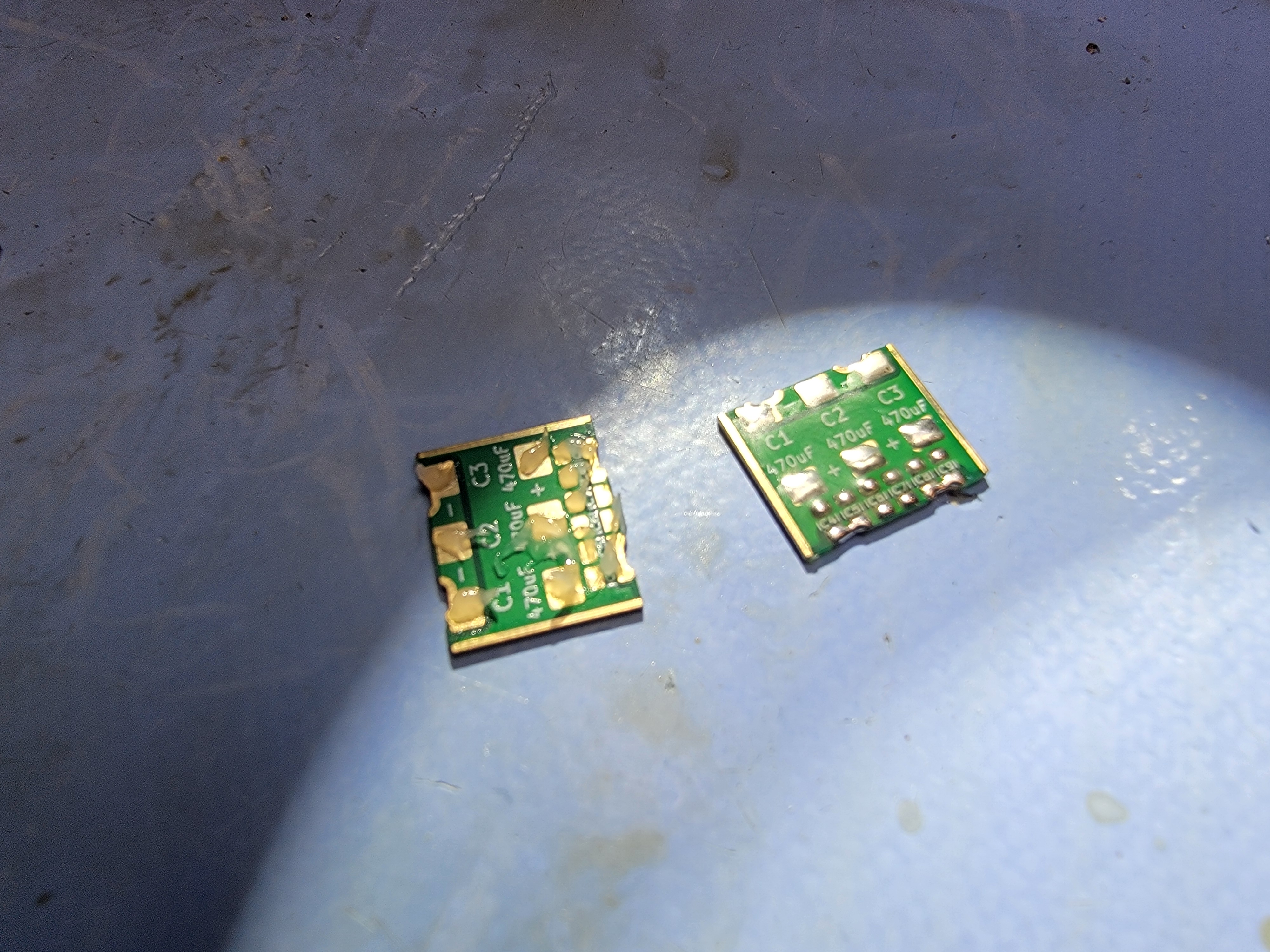

Get the tweeks out!!!

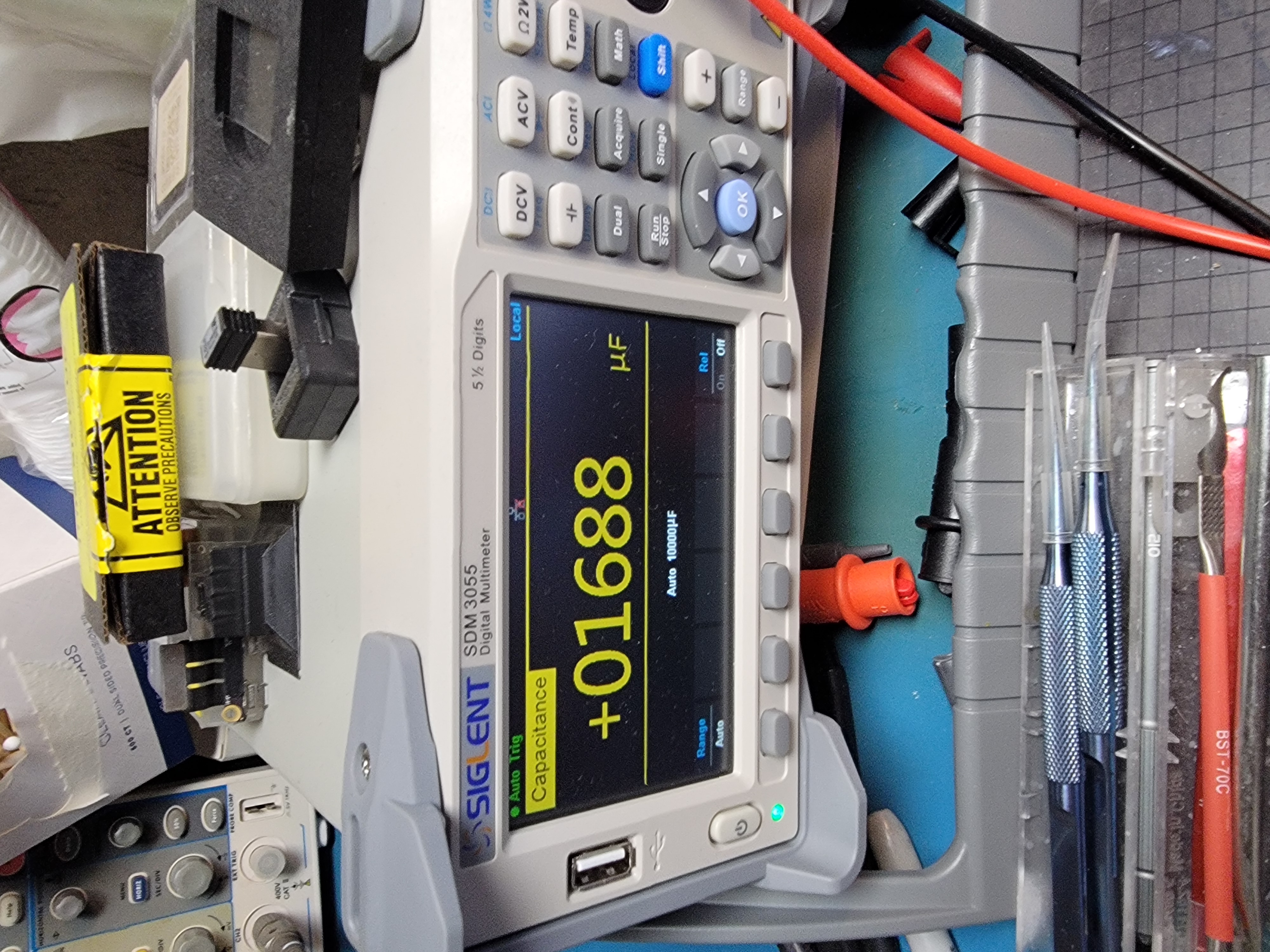

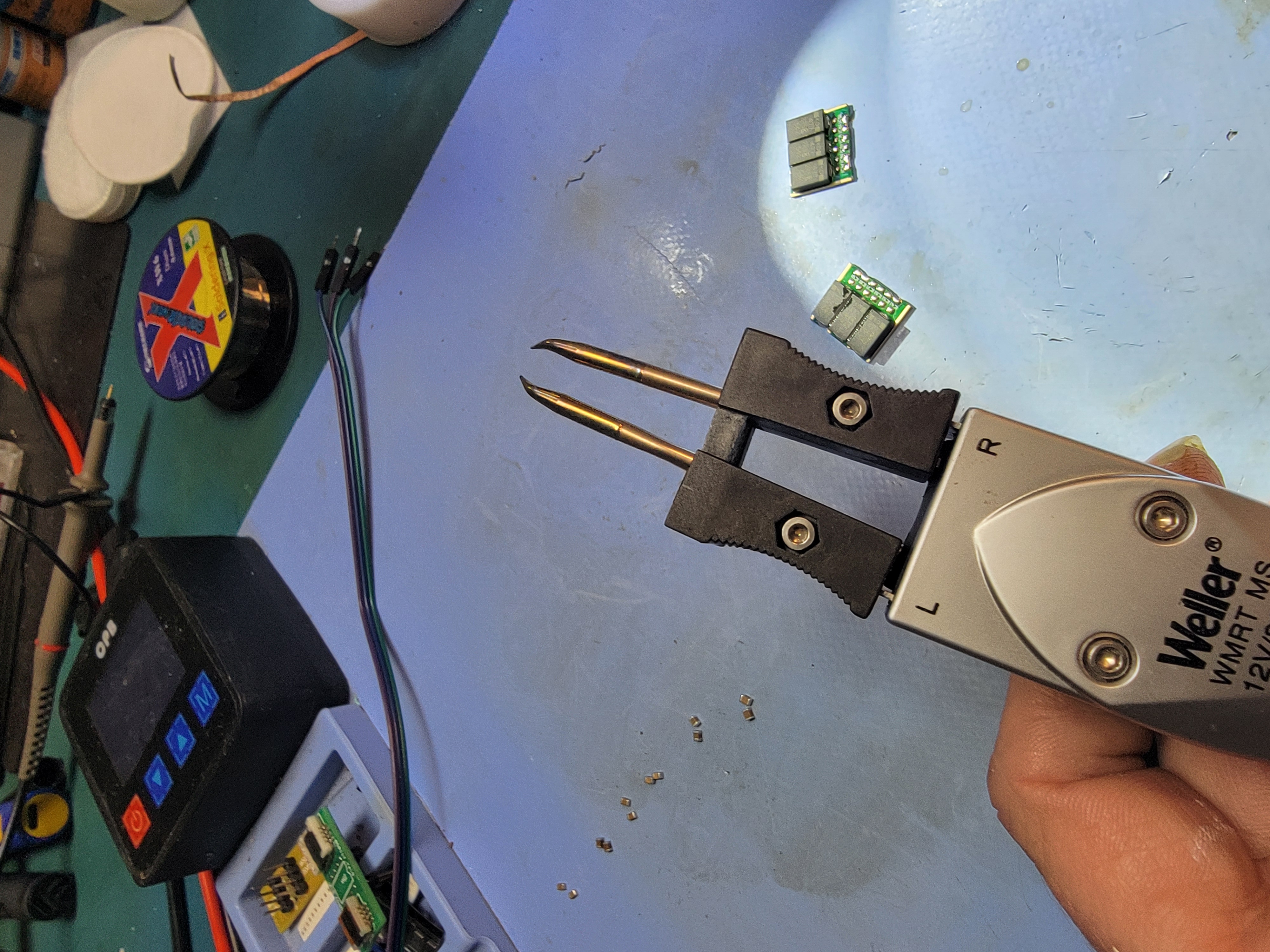

Aighty not to bad could be better but ah is what it is lets test em make sure there in spec or better

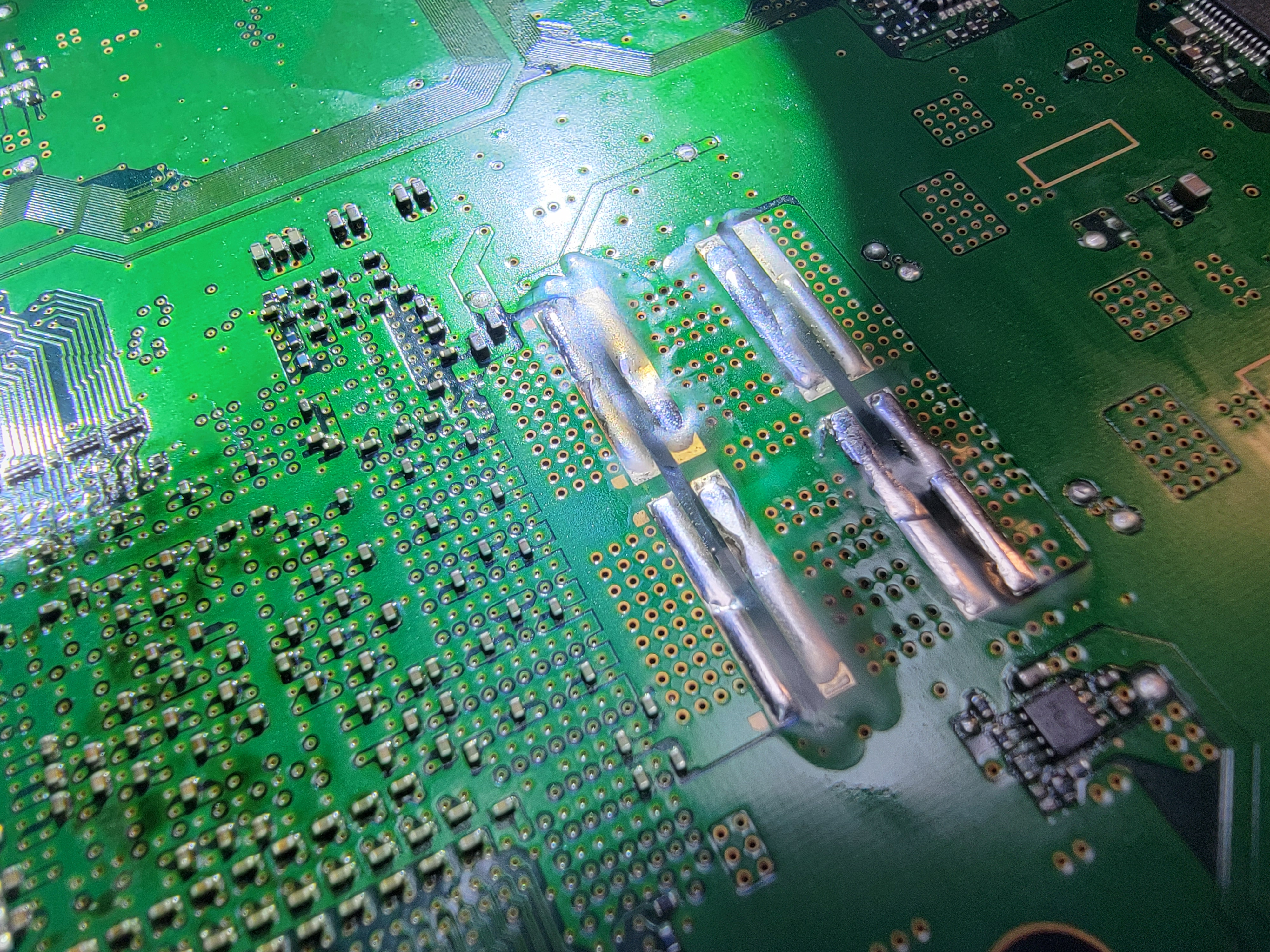

Aight Low melt Pretin 132C i know you guys liek to iron these on but that is incorrect sorry to say

Flow to board 350 / 50 air now i got a 1200$ weller so your millage with your low end stuff may vary...

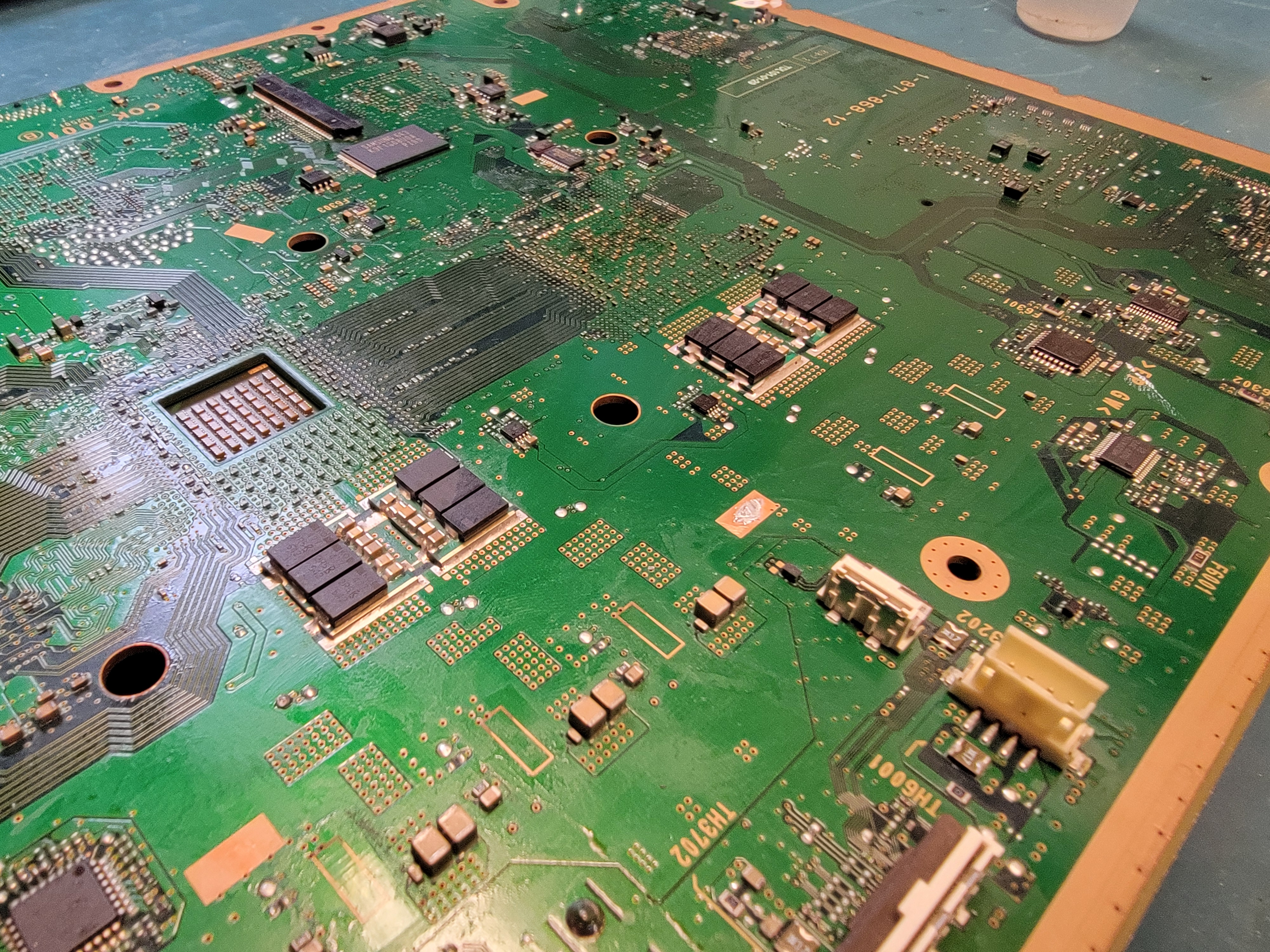

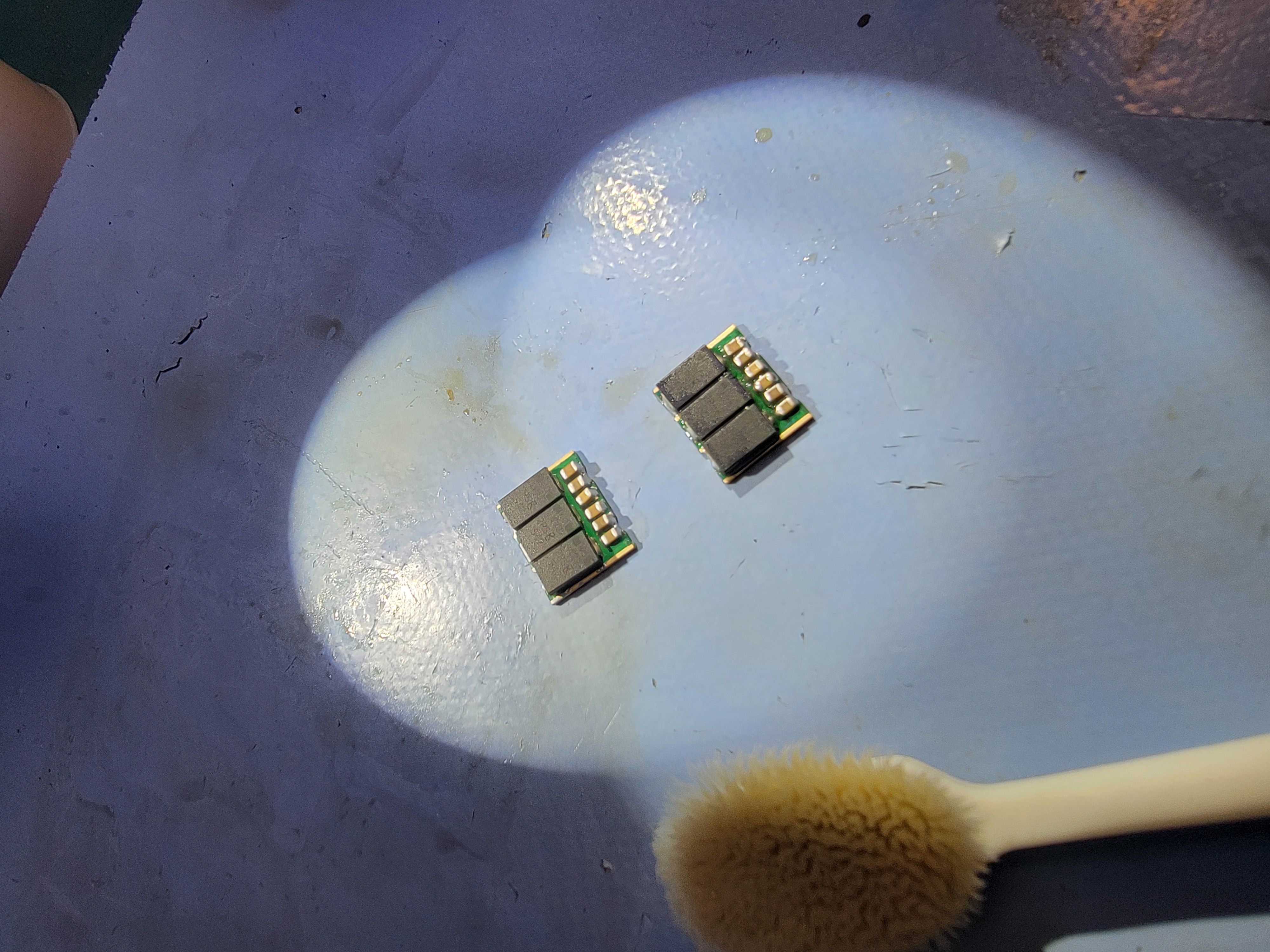

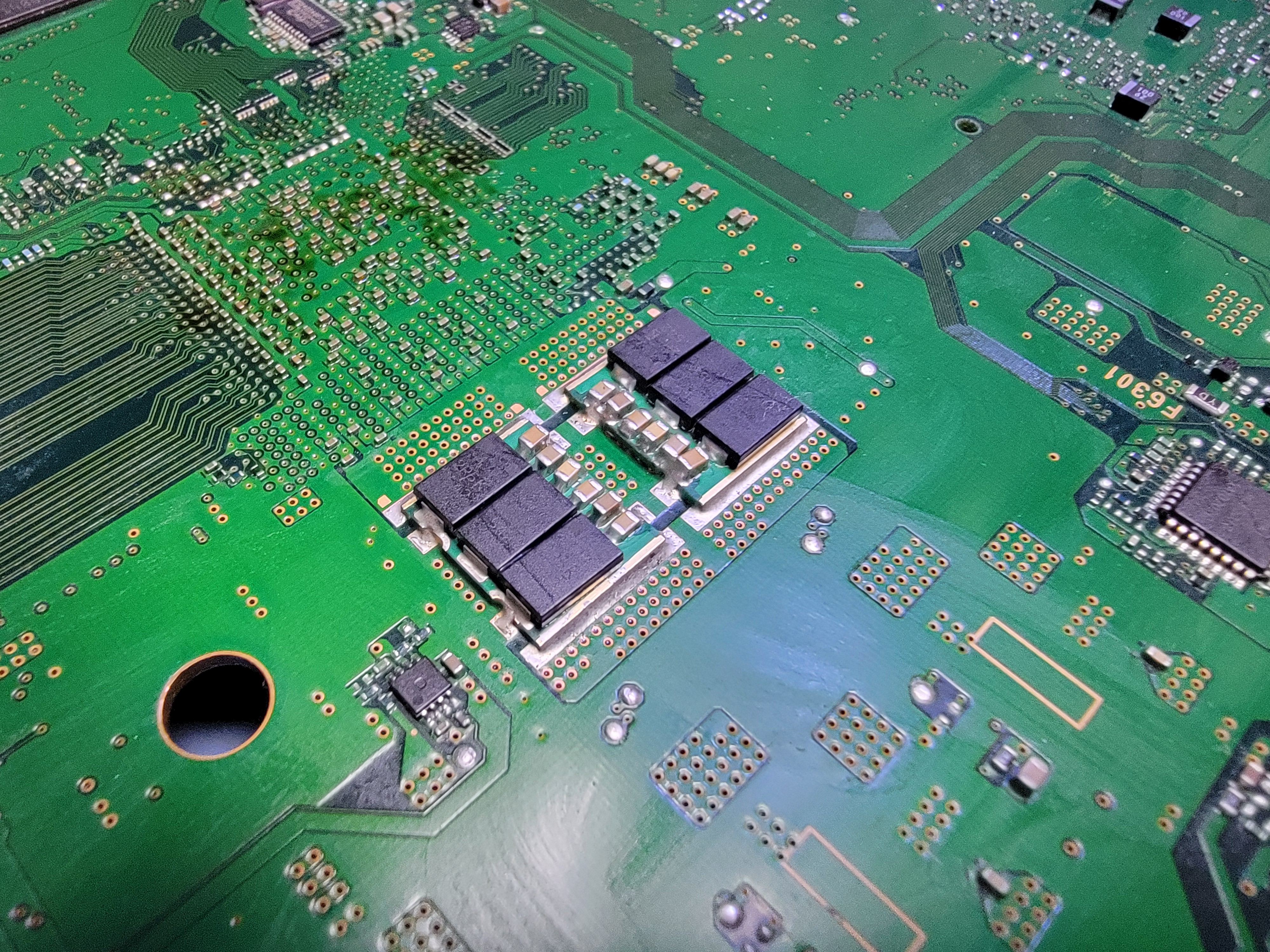

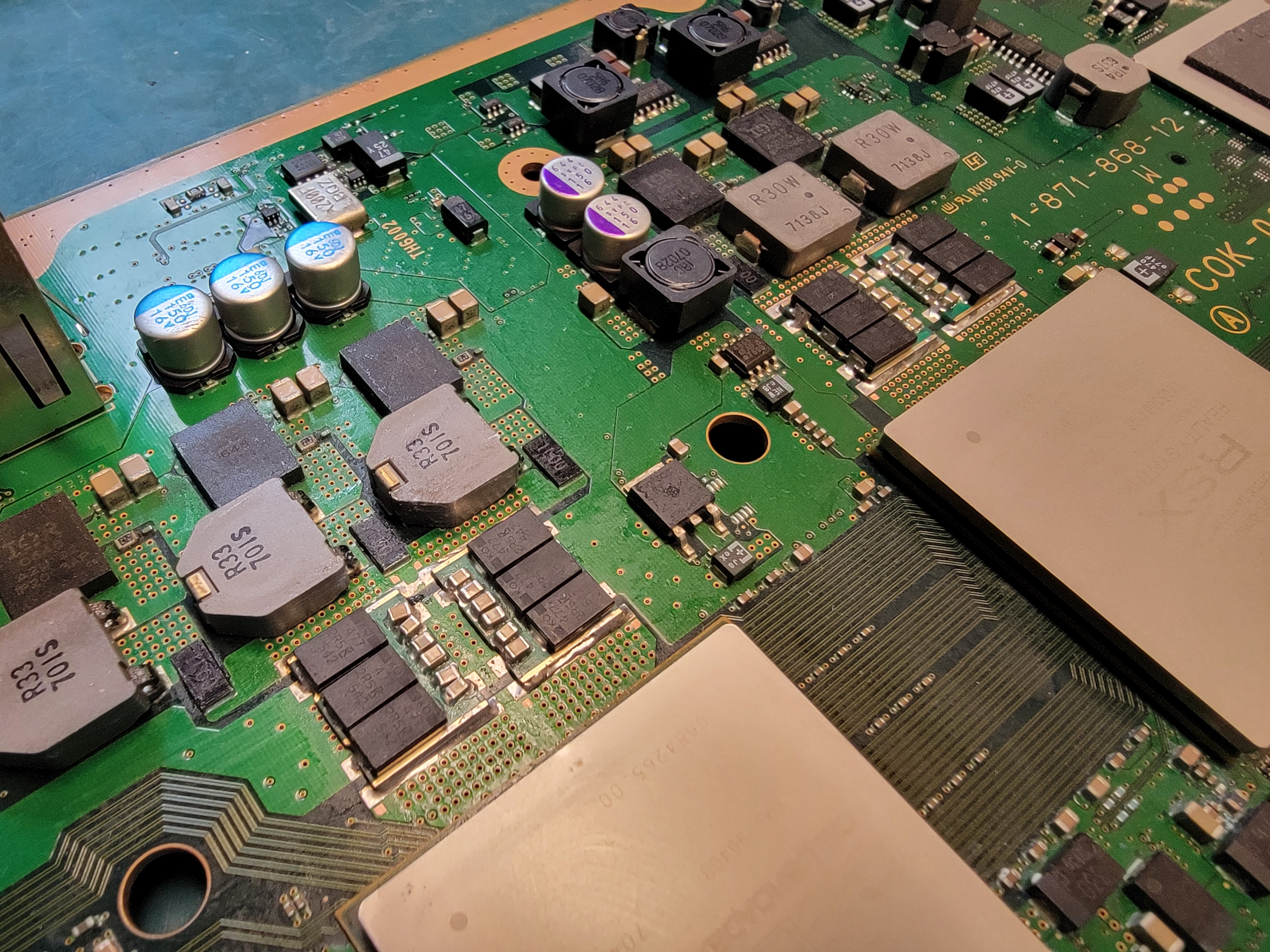

Done all 8

LOL got to work on smd alignment on the 8050's i think really its how the end pads are designed there one plane tin poin on em so they like to pull together anways...

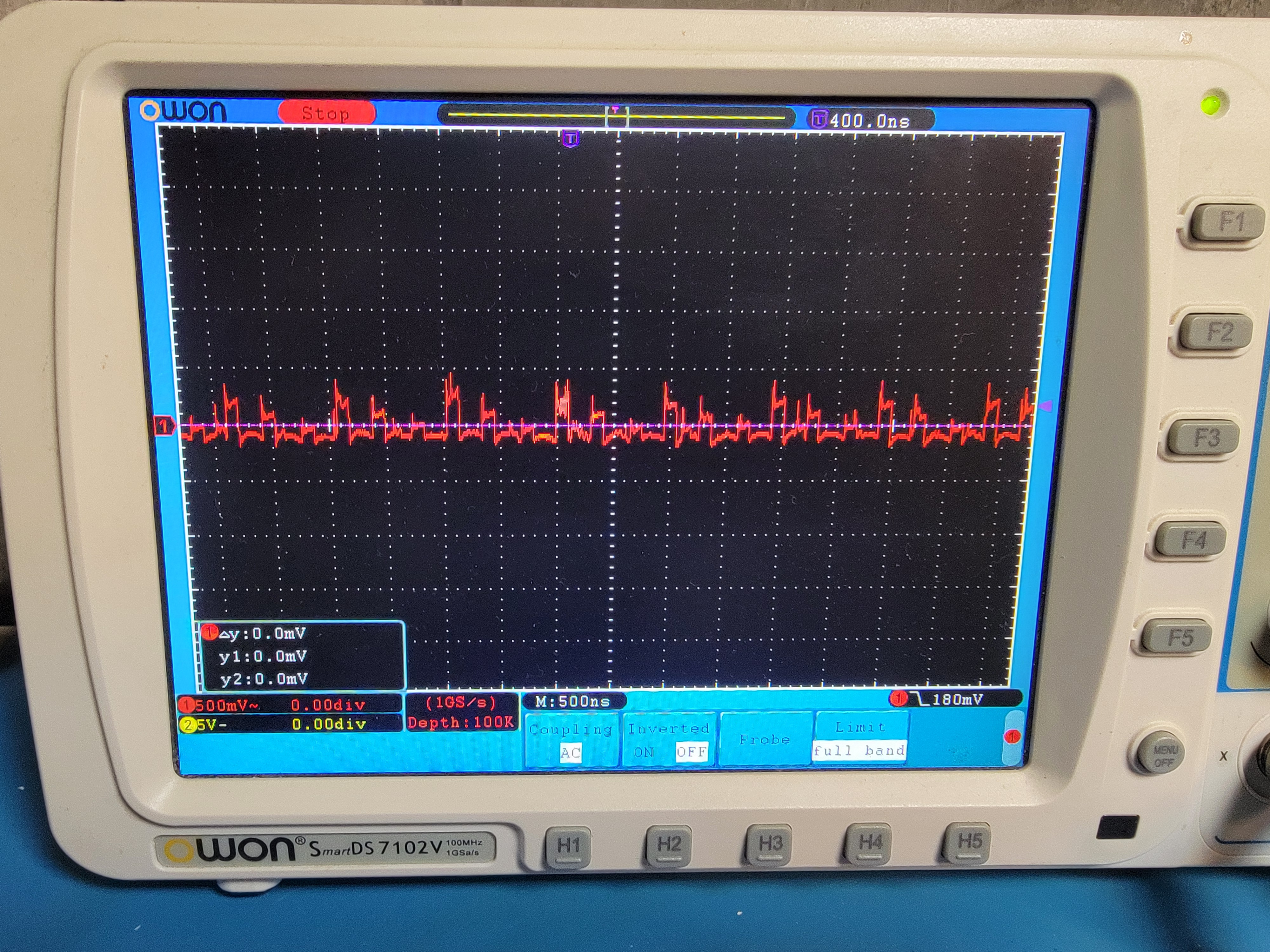

Ok lets see final scope here on this board AC Coupling

Boom pretty much same across the board cleaned up and tight....

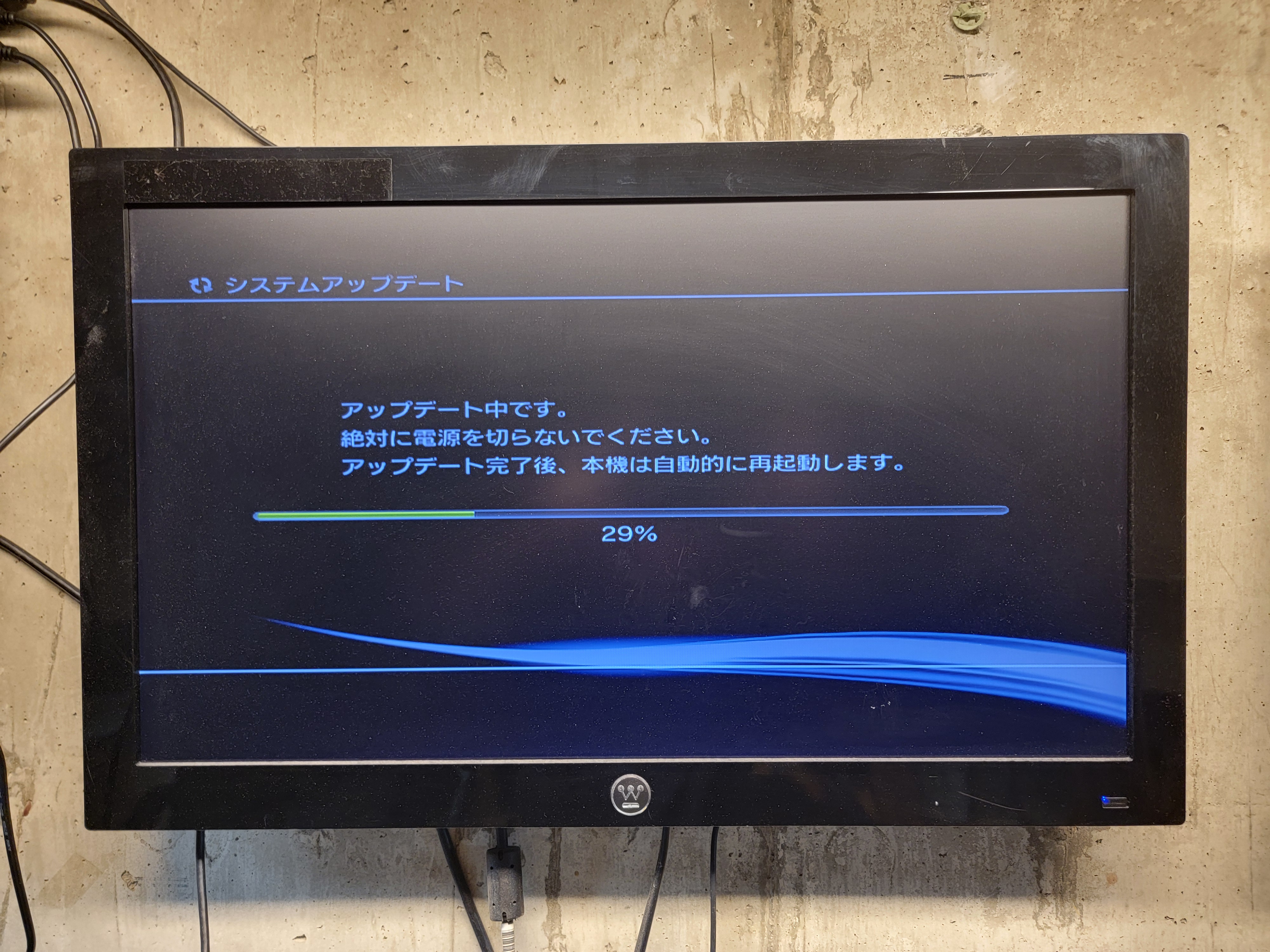

Welp looks Japanese hah sure nuff A00

Ok cool deal so KEY take away here is what??
Nothing to DO with HDMI - a0302203, a0002120 and?

DC coupling shows the full signal, meaning the DC rail voltage plus any ripple riding on it. This is useful for verifying that a rail is present and at the correct voltage. AC coupling removes the DC portion and shows only the changing part of the signal, such as ripple, spikes, and switching noise. In this repair, AC coupling was especially helpful because it made the RSX rail ripple easy to compare before and after adding temporary capacitance. When a temporary tantalum capacitor was added across the RSX rail, the ripple cleaned up significantly. When the capacitor was removed, the poor ripple returned. After replacing the RSX-side bulk decoupling, the ripple matched the known-good board much more closely. This showed that the original rail had weak decoupling and that the NEC/TOKIN replacement would corrected the problem without even doing it or wasting time and money on it.

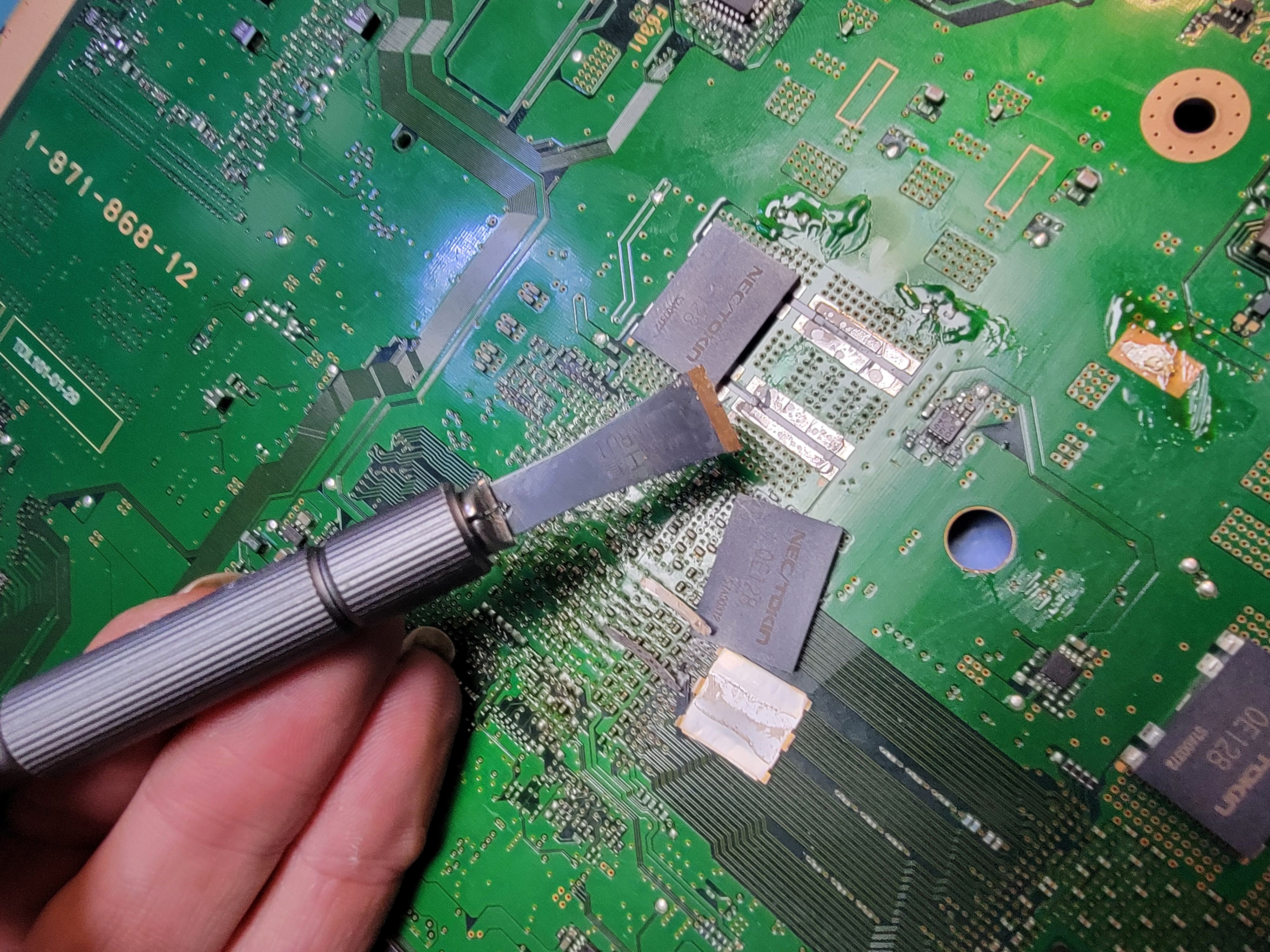

Oh oone thing i wanted to point out with the NEC removal i forgot this stuff here works a treat i use these for iphone / samsung popsoc memory package removal on the CPU slices it right off no pressure not much force works really well on the NEC tokins the blade is awesome!

None of the madness i have seen on youtube what so ever these are razor sharp and non scratch surface design on button blade portion use with wedge angle upwards away from board!!!

You can scop ethese or buy them here: https://www.ebay.com/itm/147189094858

Thought i would point that out i see people murdering boards or so i thinks haha me this is the right deal here you will need a handle for it you can also find under items
