PS4 [Research]PS2 emulator configuration on PS4

[Stayhye]

Have you tested Chamber of Secrets? This game had some weird memcard issues (back in the day)...

I haven't, but it is on the list



[Vika23]

Any chance of a share please?

Guys, pls dont ask about share emus here, @Coro will not happy about this, find another way...



[Deepfriedpopcorn]

Guys, pls dont ask about share emus here, @Coro will not happy about this, find another way...

OK sorry guys! Won't happen again



[Jvn9207]

Castlevania Curse of Darkness [SLES-53755]
emu=jak

Spoiler: txt file

--host-display-mode=16:9
--ps2-title-id=SLES-53755
--gs-uprender=2x2
--gs-upscale=edgesmooth
--force-pal-60hz=1
--cdvd-sector-read-cycles=4000
--ee-cycle-scalar=2.0

Lua:

Spoiler: SLES-53755_config.lua

local gpr = require("ee-gpr-alias")

apiRequest(0.1)

local eeObj       = getEEObject()
local emuObj    = getEmuObject()

local patcher    = function()

--gameplay
eeObj.WriteMem32(0x007526FC,0x3c013f40)
eeObj.WriteMem32(0x00752700,0x44810000)
eeObj.WriteMem32(0x00752708,0x4600c602)

--FMV's fix
eeObj.WriteMem32(0x004448D0,0x00000000)
eeObj.WriteMem32(0x00776718,0x24056e40)
eeObj.WriteMem32(0x00776724,0x24072380)
--sps fix  (by kozarovv)
eeObj.WriteMem32(0x00931280,0xFF7F8001)
--Stack-Pointer Values Changing Loop-based Control-System for enhanced
-- World and Characters Brightness without any bad additional Lights.
--[Characters (incl. Innocent Devils) true Shape and Skin will be revealed now]
--Disable also white Brigthness of the Blooms in Save-Procedure.(by Maori-Jigglypuff)
eeObj.WriteMem32(0x0041cce4,0x8e82007c)
eeObj.WriteMem32(0x0041ccf8,0x8c62000c)
eeObj.WriteMem32(0x0041cd00,0x8e82007c)
eeObj.WriteMem32(0x0041cd08,0x0c7fac40)
eeObj.WriteMem32(0x0041cd34,0x0c7fac40)
eeObj.WriteMem32(0x01feb100,0x0000482d)
eeObj.WriteMem32(0x01feb104,0x0220402d)
eeObj.WriteMem32(0x01feb108,0x2d2a0000)
eeObj.WriteMem32(0x01feb10c,0x394a0001)
eeObj.WriteMem32(0x01feb110,0x340b0002)
eeObj.WriteMem32(0x01feb114,0x0169582b)
eeObj.WriteMem32(0x01feb118,0x396b0001)
eeObj.WriteMem32(0x01feb11c,0x3c053fb0)
eeObj.WriteMem32(0x01feb120,0x514b0001)
eeObj.WriteMem32(0x01feb124,0xad050030)
eeObj.WriteMem32(0x01feb128,0x34060003)
eeObj.WriteMem32(0x01feb12c,0x11260003)
eeObj.WriteMem32(0x01feb130,0x00000000)
eeObj.WriteMem32(0x01feb134,0x1000000a)
eeObj.WriteMem32(0x01feb138,0x00000000)
eeObj.WriteMem32(0x01feb13c,0x3c073f80)
eeObj.WriteMem32(0x01feb140,0x10470006)
eeObj.WriteMem32(0x01feb144,0x00000000)
eeObj.WriteMem32(0x01feb148,0x3c074300)
eeObj.WriteMem32(0x01feb14c,0x10470003)
eeObj.WriteMem32(0x01feb150,0x00000000)
eeObj.WriteMem32(0x01feb154,0x10000002)
eeObj.WriteMem32(0x01feb158,0x00000000)
eeObj.WriteMem32(0x01feb15c,0xad070030)
eeObj.WriteMem32(0x01feb160,0x25290001)
eeObj.WriteMem32(0x01feb164,0x2d2b0004)
eeObj.WriteMem32(0x01feb168,0x1560ffe7)
eeObj.WriteMem32(0x01feb16c,0x25080004)
eeObj.WriteMem32(0x01feb170,0x03e00008)
eeObj.WriteMem32(0x01feb174,0x00000000)
eeObj.WriteMem32(0x0041ccc8,0x0c7fac5e)
eeObj.WriteMem32(0x01feb178,0x8fac0060)
eeObj.WriteMem32(0x01feb17c,0x340d0100)
eeObj.WriteMem32(0x01feb180,0x018d1824)
eeObj.WriteMem32(0x01feb184,0x50600001)
eeObj.WriteMem32(0x01feb188,0x7e800060)
eeObj.WriteMem32(0x01feb18c,0x340d0800)
eeObj.WriteMem32(0x01feb190,0x018d1824)
eeObj.WriteMem32(0x01feb194,0x50600001)
eeObj.WriteMem32(0x01feb198,0x7e800060)
eeObj.WriteMem32(0x01feb19c,0x340d0200)
eeObj.WriteMem32(0x01feb1a0,0x018d1824)
eeObj.WriteMem32(0x01feb1a4,0x50600001)
eeObj.WriteMem32(0x01feb1a8,0x7e800060)
eeObj.WriteMem32(0x01feb1ac,0x03e00008)
eeObj.WriteMem32(0x01feb1b0,0x24030003)
eeObj.WriteMem32(0x0041cdb0,0xae200040)
eeObj.WriteMem32(0x008c2264,0x1000000A)
eeObj.WriteMem32(0x0055749c,0x0c7fac6d)
eeObj.WriteMem32(0x01feb1b4,0x0200202D)
eeObj.WriteMem32(0x01feb1b8,0x10800004)
eeObj.WriteMem32(0x01feb1bc,0x00000000)
eeObj.WriteMem32(0x01feb1c0,0x8c830130)
eeObj.WriteMem32(0x01feb1c4,0x34630004)
eeObj.WriteMem32(0x01feb1c8,0xac830130)
eeObj.WriteMem32(0x01feb1cc,0x03E00008)
eeObj.WriteMem32(0x01feb1d0,0xC6200020)
eeObj.WriteMem32(0x004187bc,0x087fac80)
eeObj.WriteMem32(0x004187c0,0x00000000)
eeObj.WriteMem32(0x01feb200,0x3c0c4280)
eeObj.WriteMem32(0x01feb204,0x3c0d3f80)
eeObj.WriteMem32(0x01feb208,0x000c703c)
eeObj.WriteMem32(0x01feb20c,0x01cc7025)
eeObj.WriteMem32(0x01feb210,0x000d683c)
eeObj.WriteMem32(0x01feb214,0x01ac6825)
eeObj.WriteMem32(0x01feb218,0x71ae1488)
eeObj.WriteMem32(0x01feb21c,0x081061f1)
eeObj.WriteMem32(0x01feb220,0x7c620000)
eeObj.WriteMem32(0x0042a9d0,0x03E00008)
eeObj.WriteMem32(0x0042a9d4,0x00000000)
--[[Disable overall Fog Effect (by Maori-Jigglypuff)
eeObj.WriteMem32(0x00411c64,0xace10018)
eeObj.WriteMem32(0x00411c54,0xace0001c)
eeObj.WriteMem32(0x00411ce8,0x087fac8c)
eeObj.WriteMem32(0x00411cec,0x00000000)
eeObj.WriteMem32(0x01feb230,0x3c040002)
eeObj.WriteMem32(0x01feb234,0x3484ee00)
eeObj.WriteMem32(0x01feb238,0x0810473c)
eeObj.WriteMem32(0x01feb23c,0xac448658)
eeObj.WriteMem32(0x00411cf4,0xa0438bf2)--]]

emuObj.ThrottleMax()
end

emuObj.AddVsyncHook(patcher)



[presonuss54]

Hey Vika23. Black screen appears when starting Virtua Tennis 2 in NTSC version. is there a way? thank you and best regards

Whom can ask?

anway depends what problem game have!



[Vika23]

Hey Vika23. Black screen appears when starting Virtua Tennis 2 in NTSC version. is there a way? thank you and best regards

while boot or after menu?



[Vika23]

Castlevania Curse of Darkness [SLES-53755]
Emu= JAK

--host-display-mode=16:9
--ps2-title-id=SLES-53755
--gs-uprender=2x2
--gs-upscale=edgesmooth
--rom="PS20220WD20050620.crack"
--force-pal-60hz=1
--cdvd-sector-read-cycles=4000
--ee-cycle-scalar=2.0


Lua:

local gpr = require("ee-gpr-alias")

apiRequest(0.1)

local eeObj = getEEObject()
local emuObj = getEmuObject()

local patcher = function()

--gameplay
eeObj.WriteMem32(0x007526FC,0x3c013f40)
eeObj.WriteMem32(0x00752700,0x44810000)
eeObj.WriteMem32(0x00752708,0x4600c602)

--FMV's fix
eeObj.WriteMem32(0x004448D0,0x00000000)
eeObj.WriteMem32(0x00776718,0x24056e40)
eeObj.WriteMem32(0x00776724,0x24072380)

--gfx fix
eeObj.WriteMem32(0x009313E0,0xC37f0000)
eeObj.WriteMem32(0x00931428,0xC37f0000)

emuObj.ThrottleMax()
end

emuObj.AddVsyncHook(patcher)

Thank you very much!



[Vika23]

Indiana Jones and the Staff of Kings NTSC (SLUS21885)


CLI

--gs-uprender=2x2
--gs-upscale=EdgeSmooth

--host-display-mode=16:9
--cdvd-sector-read-cycles=2000

LUA

-- Indiana Jones and the Staff of Kings NTSC
-- Widescreen Hack by Arapapa
-- emu jakxv2

local gpr = require("ee-gpr-alias")

apiRequest(2.0)

local eeObj = getEEObject()
local emuObj = getEmuObject()

local patcher = function()
--16:9
eeObj.WriteMem32(0x001a3d40,0x3c033ec0) -- 3c033f00

--60 fps by asasega @PCSX2 forums
eeObj.WriteMem32(0x201505B4,0x2C620000)

emuObj.ThrottleMax()
end

emuObj.SetGsTitleFix( "forceSimpleFetch", "reserved", { texMode=1 } )

emuObj.SetGsTitleFix( "forceSimpleFetch", "reserved", { texMode=2 } )

emuObj.AddVsyncHook(patcher)

Indiana Jones and the Staff of Kings PS2toPS4 Test

Thanks! Non blurry image in game now!



[Vika23]

Fix for Disney's Piglet's Big Game (NTSC-U)

Used Jak v2 and the following in a config file:

--iop-cycle-scalar=2.0
--ee-cycle-scalar=2.0
--vu0-di-bits=0
--vu1-di-bits=0

Fixed missing characters, vertices, and textures. Now playable.

Game work but if u not add

--fpu-no-clamping=0
--fpu-clamp-results=1
--vu0-no-clamping=0
--vu0-clamp-results=1
--vu1-no-clamping=0
--vu1-clamp-results=1
--cop2-no-clamping=0
--cop2-clamp-results=1

in txt.

Game still have broken gfx!

Also Widescreen patch broke game, when you fight with elephant, so i dont add it!

Disney Presents Piglet's Big Game. Short GamePlay!
VIDEO



[Stayhye]

Official Config(trophies removed) for:

ADK Damashii
Ape Escape 2
Arc the Lad Twilight of the Spirits
Bully
Dark Cloud v2
Dark Cloud 2 v2
Destroy All Humans
Destroy All Humans 2
Eternal Ring
Everybody Tennis
Fahrenheit v2
Fantavision
Fatal Fury Battle Archives Vol2
Fu'un Super Combo
GTA III
GTA Vice City
GTA San Andreas
Jak TPL

Must change "--trophy-support=1" to 0



[Stayhye]

Official Config(trophies removed) for:

Harvest Moon A wonderful Life
Jak 2
Jak 3
Jak X
Kinetica
King of Fighters 98 UM
King of Fighters 2000
King of Fighters Collection The Orochi Saga
Manhunt
Max Payne
Metal Slug Anthology
Okage
Parappa the Rapper 2
Primal


Must change "--trophy-support=1" to 0



[Stayhye]

Official Config(trophies removed) for:

Psychonauts
puzzle quest challenge of the warlords
Red Dead Revolver
Red Faction(limited Run Release)
Red Faction 2
Resident Evil CVX
Rise of the Kasai
Samurai Showdown VI(Anthology)
Siren
Star Ocean 3
Star Wars Bounty Hunter
Star Wars Jedi Starfighter
Star Wars Racers Revenge


Must change "--trophy-support=1" to 0



[Carn Carby]

Hi, can someone help me with armored core 2? The game doesn't crash but I'm getting a sound glitch where some sound effects loops and I have to exit out of the game to stop it.



[presonuss54]

While boot. when booting up after loading the PlayStation 2 logo, then a black screen appears and that's it

while boot or after menu?



[Vika23]

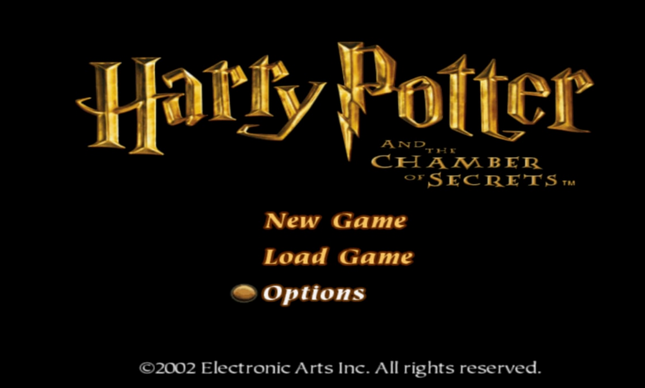

Have you tested Chamber of Secrets? This game had some weird memcard issues (back in the day)...

That cheat fix issue with card

//load game quickly
patch=1,EE,001f704c,word,1000000f

But game still crash after pick new game!



[Vika23]

Harry Potter & The Order of the Phoenix PS2toPS4 Test 60FPS (PS4 Pro Boost Mode)



[Agrippa]

Have you tested Chamber of Secrets? This game had some weird memcard issues (back in the day)...

This game has got some crazy DMA related issues (it does freeze on the PS3 randomly too). PCSX2 patches were ugly and broken, they worked by a pure luck (somebody patched a kernel space reserved area). I would rather consider trying different eeObj.SchedulerDelayEvent values with various events, like vif1.dma, gif.dma, ipu0.dma, ipu1.dma, etc.

Prisoner of Azkaban may be affected too.



[Manu Mx]

WIP Fix for Batman Begins NTSC

CLI

--gs-uprender=2x2
--gs-upscale=edgesmooth
--gs-kernel-cl-up="up2x2skipinterp" #fixes white lines around characters/objects
--host-display-mode=16:9

--ee-cycle-scalar=0.6
--iop-cycle-scalar=1.5

#emu used=rogue v1 or v2

LUA

-- Batman Begins NTSC
-- 60fps by asasega @pcsx2 forums
-- switch by @kugozx
-- emu used=rogue v1 or v2

local gpr = require("ee-gpr-alias")

apiRequest(0.1)

local eeObj = getEEObject()
local emuObj = getEmuObject()

local patcher = function()
--60fps switch by @kugozx
local Speed_Switch = eeObj.ReadMem16(0x00448642)

--title screen freeze fix?? but breaks FMVs
if (Speed_Switch == 0xFBFD) then --Press L1+L3 Enabled 60 Fps
   eeObj.WriteMem32(0x00409BF8,0x0000003C)
end

if (Speed_Switch == 0xFBFB) then --Press L1+R3 Disabled 60 Fps
   eeObj.WriteMem32(0x00409BF8,0x0000001E)
end

end

emuObj.AddVsyncHook(patcher)

Works great so far other than the FMVs run too fast(??). Tested a Little. Fix breaks FMVs for some reason?

This 30/60hz switching seems to big issue for a lot of (EA) games. Perhaps we can implement something like this (from Jak* emus):

-- Force MPEG movies to 30Hz to prevent stutters
local halfspeed = 0
local fixupMPEGsync1 = function()
    -- always capture this flag
    halfspeed = eeObj.ReadMem32(eeObj.GetGpr(gpr.gp) + 0x9c)
    local falseval = eeObj.GetGpr(gpr.s7)

    -- check if we're running a FMV
    if eeObj.GetGpr(gpr.v1) ~= falseval then
        -- pretend we're not and set 30hz to force and extra syncv()
        eeObj.SetGpr(gpr.v1, falseval) -- 3020801 = false
        eeObj.WriteMem32(eeObj.GetGpr(gpr.gp) + 0x9c, falseval + 4) -- 3020805 = true
    end
end

local fixupMPEGsync2 = function()
    -- restore half-speed flag
    eeObj.WriteMem32(eeObj.GetGpr(gpr.gp) + 0x9c, halfspeed)
end


eeOverlay.AddPostHook("drawable.main", 0x16c, 0x9c6302fc, fixupMPEGsync1)
eeOverlay.AddPostHook("drawable.main", 0x184, 0x8ef90173, fixupMPEGsync2)



[Manu Mx]

That cheat fix issue with card

//load game quickly
patch=1,EE,001f704c,word,1000000f

But game still crash after pick new game!

You don't need that patch in Kasai v1, when using --cdvd-sector-read-cycles=5000 in CLI. The EA/WB logo and FMV run without any issues. When you enter the main menu every entry (even Options) will crash the emu though.



[Vika23]

You don't need that patch in Kasai v1, when using --cdvd-sector-read-cycles=5000 in CLI. The EA/WB logo and FMV run without any issues. When you enter the main menu every entry (even Options) will crash the emu though.

nice
