Whats up with Tomb Raider 1 & 2??

CFW1971 · Jun 13, 2020

what is ps3netsrv 20200611 ??
whats the purpose ? what it do ?

Major_Pothead92 · Jun 13, 2020

CFW1971 said:
what is ps3netsrv 20200611 ??
whats the purpose ? what it do ?

Not exactly sure where that came from but I think that relates to ps3 net server (streaming games from a computer or other device to your PS3.)

jolek · Jun 13, 2020

CFW1971 said:
Did this process work on a SLES-00485 ??
I tested mine and it dont work for me ?

Download patch from here:
https://www.psx-place.com/threads/whats-up-with-tomb-raider-1-2.27086/#post-216387.
Unpack it.
Download PPF-o-Matic:
https://www.psx-place.com/resources/ppf-o-matic.507/.

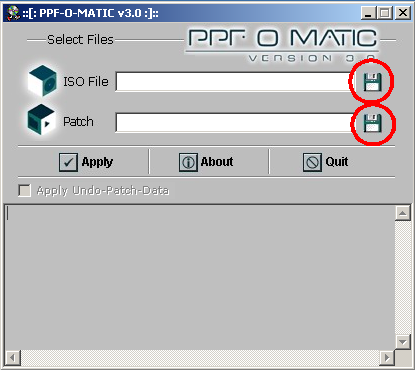

Launch PPF-o-Matic:
To look for files use floppy disks:

In "ISO File" look for "Tomb Raider (F).bin"
In "Patch" look for "Tomb Raider (France).ppf".
Here is an example how it should looks like:
"Apply".
Grab and install latest webMAN MOD 1.47.28 from here:
https://github.com/aldostools/webMAN-MOD/releases.
Copy patched "Tomb Raider (F).bin" with "Tomb Raider (F).cue"
into "hdd0:/PSXISO" onto HDD in your PS3.

CFW1971 · Jun 13, 2020

Ok i will try that... in couples of minutes i should know if it work for me or not

CFW1971 · Jun 13, 2020

jolek said:
Download patch from here:
https://www.psx-place.com/threads/whats-up-with-tomb-raider-1-2.27086/#post-216387.
Unpack it.

Download PPF-o-Matic:
https://www.psx-place.com/resources/ppf-o-matic.507/.

Launch PPF-o-Matic:

To look for files use floppy disks:

In "ISO File" look for "Tomb Raider (F).bin"
In "Patch" look for "Tomb Raider (France).ppf".

Here is an example how it should looks like:

"Apply".

Grab and install latest webMAN MOD 1.47.28 from here:
https://github.com/aldostools/webMAN-MOD/releases.

Copy patched "Tomb Raider (F).bin" with "Tomb Raider (F).cue"
into "hdd0:/PSXISO" onto HDD in your PS3.

IT WORK !!!!!!!!!!
IT DAMN WORK!!!!!!!!!

...but it seem the start of every "talking" of lara is chopped off a tiny fraction of it
...also maybe the language is a bit faster than normal . a tiny bit but the most annoying is the chopped start of every conversation

Also , after installation of the latest webman mod 1.47.28 , i now only see 58 PSX ISO instead of my 100 collection ??

CFW1971 · Jun 13, 2020

krHACKen said:
Made some patches for TR1, but haven't tested them.

Ohhh MAN !!!!!!!
With your Skill & Helps krHACKen , Im FINALLY able to enjoy ONE of the Damn 3 PSX games i was NEVER able to make running on my CFW PS3

THANKS YOU SO MUCH !!!!

*P.S. I just HOPE you are working on a TR2 patch and ultimately a Grand Thef Auto one , that would be the creme-de-la-creme !!!

Thanks man , sooo much !!!

CFW1971 · Jun 13, 2020

Thanks you so much to Major & Jolek too !!
damn im soooo happy right now!

Omage · Jun 13, 2020

I try TR1 japan(SLPS00617) convert to PBP & inject CDDA
main menu have CDDA

jolek · Jun 14, 2020

CFW1971 said:
IT WORK !!!!!!!!!!
IT DAMN WORK!!!!!!!!!

Yay.

CFW1971 said:
...but it seem the start of every "talking" of lara is chopped off a tiny fraction of it
...also maybe the language is a bit faster than normal . a tiny bit but the most annoying is the chopped start of every conversation

What CUE you have try?

Original CUE from your game after ripping ("Tomb Raider (F).cue").
CUE from patch ("Tomb Raider (France).cue").

If from patch, try original.

CFW1971 said:
Also , after installation of the latest webman mod 1.47.28 , i now only see 58 PSX ISO instead of my 100 collection ??

Can you try to Refresh My Games & XMB:

Look for "Refresh My Games & XMB" in webMAN MOD options (press to enter it):
This notification should appear:
After some time this one
Reboot your PS3

CFW1971 said:
Ohhh MAN !!!!!!!
With your Skill & Helps krHACKen , Im FINALLY able to enjoy ONE of the Damn 3 PSX games i was NEVER able to make running on my CFW PS3

It is good that you mention krHACKen, he is responsible for this patch, so he should take all credits.

CFW1971 said:
*P.S. I just HOPE you are working on a TR2 patch and ultimately a Grand Thef Auto one , that would be the creme-de-la-creme !!!

Unfortunately, I'm not sure if anyone is working on TR2 patch.

Grand Theft Auto (at least SLES_000.32) should work without any patch with webMAN MOD 1.47.28.
If it hangs at this screen, CDDA is missing:

https://www.psx-place.com/threads/gta1-on-ps3.25066/#post-191584.

sandungas · Jun 14, 2020

CFW1971 said:
Hi Jolek , Did this process work on a SLES-00485 ??
I tested mine and it dont work for me ?

are you able to test my bin/cue files ?

EDIT:
Links removed by Moderator

Is the second time you post a download link of a copyrighted game https://www.psx-place.com/threads/its-official.29279/#post-239095
The first time you was temporally banned, and to be fair this time you should be given another ban of the same or longer lenght because you are reincident in breaking the forum rules

Im going to ban you for a week and im going to open a private talk to discuss with the other forum staff if increasing the ban leght

krHACKen · Jun 14, 2020

I started porting the TR2 fix the other day, but bruh, 9 versions. Too busy to continue atm.

jolek · Jun 14, 2020

krHACKen said:
I started porting the TR2 fix the other day, but bruh, 9 versions. Too busy to continue atm.

Thank you for your current work.
If I may... I have a question about CUE files for TR1 that you add to repository's patch...

When I look at redump I've notice that there is something strange:

Localization	Redump time of 1st track	2nd track from org	2nd track from patch
French	27:47:27	PREGAP 00:02:00 INDEX 01 27:47:27	INDEX 00 27:47:27 INDEX 01 27:49:27
German	27:47:11	PREGAP 00:02:00 INDEX 01 27:47:11	INDEX 00 27:47:11 INDEX 01 27:49:11
Europe	27:43:33	PREGAP 00:02:00 INDEX 01 27:43:33	INDEX 00 27:43:33 INDEX 01 27:45:33
USA 1.0	27:42:59	?	INDEX 00 27:42:59 INDEX 01 27:44:59
...
Japan	?	?	INDEX 00 27:38:17 INDEX 01 27:40:17

French: http://redump.org/disc/29243/.
German: http://redump.org/disc/4305/.
Europe: http://redump.org/disc/888/.
USA 1.0: http://redump.org/disc/11913/.

INDEX 01 from org game do not match INDEX 01 from patch.
There is 2s too long delay between tracks.

Reason for editing: Added more info in table
Removed total length because it was inaccurate

CFW1971 · Jun 21, 2020

krHACKen said:
I started porting the TR2 fix the other day, but bruh, 9 versions. Too busy to continue atm.

Could you just fix the TR2 SLES-00719
its the ONLY game i miss in my little collection , i would be sooo happy if you can patch only this one for now !!
Ohh Please

krHACKen · Jun 22, 2020

krHACKen said:
The audio goes out of sync during the cutscenes. They do start sync'ed, but after a few seconds the animation seems to have been slowed down. Encountered the same problem with other emus. Meh.
I hope someone makes a better fix.

krHACKen · Jun 22, 2020

Also, @jolek the TR1 cuesheets you've posted are wrong. The track 2 pregap overlaps the data track by 150 sectors, so the other tracks.

jolek · Jun 22, 2020

krHACKen said:
Also, @jolek the TR1 cuesheets you've posted are wrong. The track 2 pregap overlaps the data track by 150 sectors, so the other tracks.

Let me put this differently.

If I use your patch ("Tomb Raider (Europe).ppf") with org CUE:

Code:

FILE "Tomb Raider 1 (E).BIN" BINARY
  TRACK 01 MODE2/2352
    INDEX 01 00:00:00
  TRACK 02 AUDIO
    PREGAP 00:02:00
    INDEX 01 27:43:33
...

or with only changed PREGAP:

Code:

FILE "Tomb Raider 1 (E).BIN" BINARY
  TRACK 01 MODE2/2352
    INDEX 01 00:00:00
  TRACK 02 AUDIO
    INDEX 00 27:41:33
    INDEX 01 27:43:33
...

Everything is fine at least with Europe version of Tomb Raider (SLES_000.24).

If I use CUE from patch:
Code:
```
FILE "Tomb Raider (Europe).bin" BINARY
  TRACK 01 MODE2/2352
    INDEX 01 00:00:00
  TRACK 02 AUDIO
    INDEX 00 27:43:33
    INDEX 01 27:45:33
...
```
Vocal (CDDA) hints at mansion starts delayed by 2s.
E.g:
Patched CUE:
"... on a guided tour".
Video:
http://www.mediafire.com/file/v64d3gqrwo2q99t/Patch_CUE.3gp.

Org CUE:
"Welcome to my home, I'll take you on a guided tour".
Video:
http://www.mediafire.com/file/gi9m9hp8hvmthc2/Org_CUE.3gp.

Reason for editing: Added link to video

krHACKen · Jun 22, 2020

My cuesheets normally match Redump. Issue is either a bad dump that lacks the first pregap, or the ODE, or perhaps a glitch caused by the PPF patch... or else I'm totally confused :/ .

The dump of the european release of Tomb Raider should be 612 465 504 bytes. Smaller = bad dump, that will mismatch the cuesheet I've posted.
If it's offset-correct, its MD5 sum should be 1bac2eff681f22d201f6e07742e22a3c.

If the disc was dumped to Redump standard (1 bin file per track), use IsoBuster to merge the disc image. The resulting BIN+CUE will "match the full image", like in the attached Rage Racer (Japan) example [dic_img = dumped data, isobuster_combined = IsoBuster output; no game data provided of course, just logs and hashes].

jolek · Jun 24, 2020

krHACKen said:
The dump of the european release of Tomb Raider should be 612 465 504 bytes. Smaller = bad dump, that will mismatch the cuesheet I've posted.
If it's offset-correct, its MD5 sum should be 1bac2eff681f22d201f6e07742e22a3c.

Since it was long ago today I made another CD image (BIN+CUE) with ImgBurn 2.5.8.0.

Tomb Raider SLES_000.24.
Size of my single BIN is: 612 112 704 bytes.
md5sum: 290ff3987713c3ce100cc9d037991e96

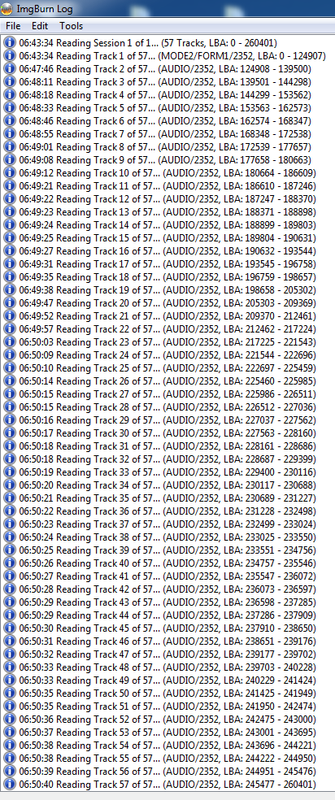

Here is my log from ImgBurn (no read error) after ripping disc:

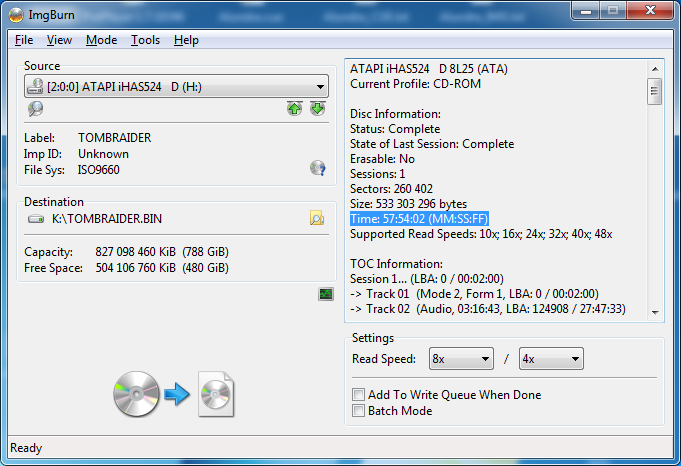

Here is my basic info about org disk (57:54:02):

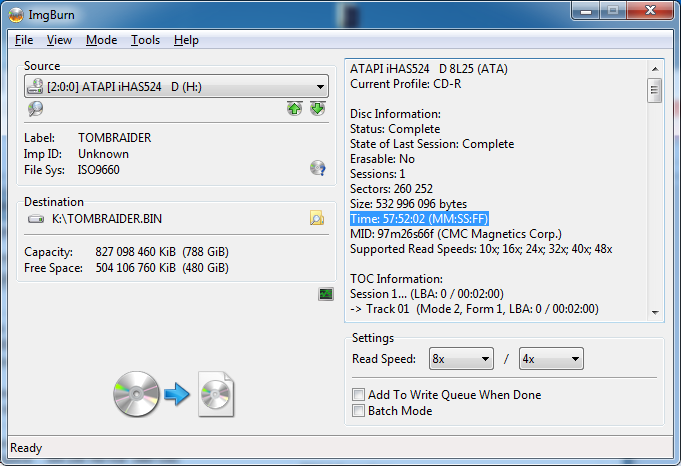

Here is an info if I wrote patched CUE (57:52:02):

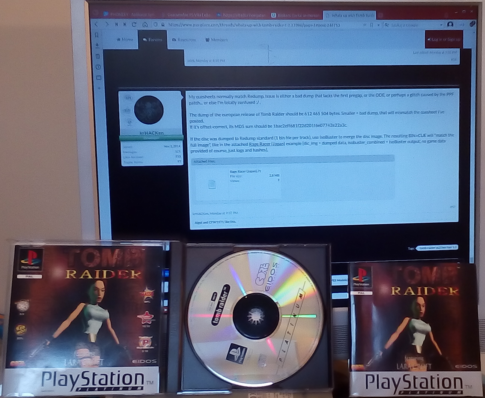

Here is photo of my org TR (I can give more if you like):

Org CUE (I can upload it in attachment if you like):

Code:

FILE "TOMBRAIDER.BIN" BINARY
  TRACK 01 MODE2/2352
    INDEX 01 00:00:00
    REM TAOGAP 00:02:00
  TRACK 02 AUDIO
    INDEX 01 27:43:33
  TRACK 03 AUDIO
    INDEX 00 30:58:01
    INDEX 01 31:00:01
  TRACK 04 AUDIO
    INDEX 00 32:01:74
    INDEX 01 32:03:74
  TRACK 05 AUDIO
    INDEX 00 34:05:38
    INDEX 01 34:07:38
  TRACK 06 AUDIO
    INDEX 00 36:05:49
    INDEX 01 36:07:49
  TRACK 07 AUDIO
    INDEX 00 37:22:48
    INDEX 01 37:24:48
  TRACK 08 AUDIO
    INDEX 00 38:18:39
    INDEX 01 38:20:39
  TRACK 09 AUDIO
    INDEX 00 39:26:58
    INDEX 01 39:28:58
  TRACK 10 AUDIO
    INDEX 00 40:06:64
    INDEX 01 40:08:64
  TRACK 11 AUDIO
    INDEX 00 41:26:10
    INDEX 01 41:28:10
  TRACK 12 AUDIO
    INDEX 00 41:34:47
    INDEX 01 41:36:47
  TRACK 13 AUDIO
    INDEX 00 41:49:46
    INDEX 01 41:51:46
  TRACK 14 AUDIO
    INDEX 00 41:56:49
    INDEX 01 41:58:49
  TRACK 15 AUDIO
    INDEX 00 42:08:54
    INDEX 01 42:10:54
  TRACK 16 AUDIO
    INDEX 00 42:19:57
    INDEX 01 42:21:57
  TRACK 17 AUDIO
    INDEX 00 42:58:45
    INDEX 01 43:00:45
  TRACK 18 AUDIO
    INDEX 00 43:41:34
    INDEX 01 43:43:34
  TRACK 19 AUDIO
    INDEX 00 44:06:58
    INDEX 01 44:08:58
  TRACK 20 AUDIO
    INDEX 00 45:35:28
    INDEX 01 45:37:28
  TRACK 21 AUDIO
    INDEX 00 46:29:45
    INDEX 01 46:31:45
  TRACK 22 AUDIO
    INDEX 00 47:10:62
    INDEX 01 47:12:62
  TRACK 23 AUDIO
    INDEX 00 48:14:25
    INDEX 01 48:16:25
  TRACK 24 AUDIO
    INDEX 00 49:11:69
    INDEX 01 49:13:69
  TRACK 25 AUDIO
    INDEX 00 49:27:22
    INDEX 01 49:29:22
  TRACK 26 AUDIO
    INDEX 00 50:04:10
    INDEX 01 50:06:10
  TRACK 27 AUDIO
    INDEX 00 50:11:11
    INDEX 01 50:13:11
  TRACK 28 AUDIO
    INDEX 00 50:18:12
    INDEX 01 50:20:12
  TRACK 29 AUDIO
    INDEX 00 50:25:12
    INDEX 01 50:27:12
  TRACK 30 AUDIO
    INDEX 00 50:32:13
    INDEX 01 50:34:13
  TRACK 31 AUDIO
    INDEX 00 50:40:11
    INDEX 01 50:42:11
  TRACK 32 AUDIO
    INDEX 00 50:47:12
    INDEX 01 50:49:12
  TRACK 33 AUDIO
    INDEX 00 50:56:50
    INDEX 01 50:58:50
  TRACK 34 AUDIO
    INDEX 00 51:06:17
    INDEX 01 51:08:17
  TRACK 35 AUDIO
    INDEX 00 51:13:64
    INDEX 01 51:15:64
  TRACK 36 AUDIO
    INDEX 00 51:21:03
    INDEX 01 51:23:03
  TRACK 37 AUDIO
    INDEX 00 51:37:74
    INDEX 01 51:39:74
  TRACK 38 AUDIO
    INDEX 00 51:45:00
    INDEX 01 51:47:00
  TRACK 39 AUDIO
    INDEX 00 51:52:01
    INDEX 01 51:54:01
  TRACK 40 AUDIO
    INDEX 00 52:08:07
    INDEX 01 52:10:07
  TRACK 41 AUDIO
    INDEX 00 52:18:47
    INDEX 01 52:20:47
  TRACK 42 AUDIO
    INDEX 00 52:25:48
    INDEX 01 52:27:48
  TRACK 43 AUDIO
    INDEX 00 52:32:48
    INDEX 01 52:34:48
  TRACK 44 AUDIO
    INDEX 00 52:41:61
    INDEX 01 52:43:61
  TRACK 45 AUDIO
    INDEX 00 52:50:10
    INDEX 01 52:52:10
  TRACK 46 AUDIO
    INDEX 00 53:00:01
    INDEX 01 53:02:01
  TRACK 47 AUDIO
    INDEX 00 53:07:02
    INDEX 01 53:09:02
  TRACK 48 AUDIO
    INDEX 00 53:14:03
    INDEX 01 53:16:03
  TRACK 49 AUDIO
    INDEX 00 53:21:04
    INDEX 01 53:23:04
  TRACK 50 AUDIO
    INDEX 00 53:37:00
    INDEX 01 53:39:00
  TRACK 51 AUDIO
    INDEX 00 53:44:00
    INDEX 01 53:46:00
  TRACK 52 AUDIO
    INDEX 00 53:51:00
    INDEX 01 53:53:00
  TRACK 53 AUDIO
    INDEX 00 53:58:01
    INDEX 01 54:00:01
  TRACK 54 AUDIO
    INDEX 00 54:07:21
    INDEX 01 54:09:21
  TRACK 55 AUDIO
    INDEX 00 54:14:22
    INDEX 01 54:16:22
  TRACK 56 AUDIO
    INDEX 00 54:24:01
    INDEX 01 54:26:01
  TRACK 57 AUDIO
    INDEX 00 54:31:02
    INDEX 01 54:33:02

The strange thing is:
REM TAOGAP 00:02:00
Previously I have:
PREGAP 00:02:00
but I don't remember with that tool\app I made previous image...

EDIT 2:
CDDA in mansion starts at 26 ends at 50.
All these tracks plays fine with org CUE.

In this cutscene (Track 23 CDDA) at the end of Tomb of Qualopec:

With org CUE audio starts ~2s too fast.
With patched everything is almost sync (A\V).

Reason for editing: added length image of patched CUE
+added more tests
track in this cut-scene is 23
CDDA in mansion are from 26 to 50

krHACKen · Jun 24, 2020

Yeah, ImgBurn makes bad PS1CDDA dumps :confusion:

.
That "TAOGAP" thing is non standard, didn't know it existed. CUE2POPS pads the image and adds the missing amount of data to timecodes on PREGAP, but not on TAOGAP.

As you can see in the attached sample (of Rage Racer (Japan) again), IsoBuster makes a complete image with correct timecodes, but the INDEX 00 entries are missing. I don't know if that has something to do with the ODD that I'm using... Anyway, burning such kind of [unpatched] Tomb Raider / Tomb Raider II image with no INDEX 00 references will cause the infamous BSOD issue, since they're pregap sensitive.

CFW1971 · Jun 24, 2020

krHACKen said:
Yeah, ImgBurn makes bad PS1CDDA dumps.
That "TAOGAP" thing is non standard, didn't know it existed. CUE2POPS pads the image and adds the missing amount of data to timecodes on PREGAP, but not on TAOGAP.

As you can see in the attached sample (of Rage Racer (Japan) again), IsoBuster makes a complete image with correct timecodes, but the INDEX 00 entries are missing. I don't know if that has something to do with the ODD that I'm using... Anyway, burning such kind of [unpatched] Tomb Raider / Tomb Raider II image with no INDEX 00 references will cause the infamous BSOD issue, since they're pregap sensitive.

I pm you / start conversation krHACKen

Whats up with Tomb Raider 1 & 2??

CFW1971

Member

Major_Pothead92

Member

jolek

Senior Member

CFW1971

Member

CFW1971

Member

CFW1971

Member

CFW1971

Member

Omage

Member

jolek

Senior Member

sandungas

krHACKen

jolek

Senior Member

Attachments

CFW1971

Member

krHACKen

Attachments

krHACKen

jolek

Senior Member

krHACKen

Attachments

jolek

Senior Member

krHACKen

Attachments

CFW1971

Member

Similar threads
